detecting disintegration of solid
there are six tubes in one basket assembly

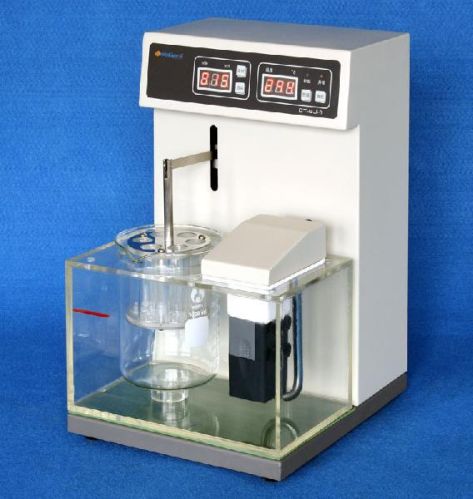

automation disintegration tester
descriptions:
bj series of instruments are used for detecting disintegration of solid in prescriptive conditions.
Applicable standards:
national standard (chinese codex)2005
corporate standard (disintegration tester) q12xq0188-2004
features:
1. there are six tubes in one basket assembly.
2. auto stop at timing point.
3. the bath liquid can achieve an even temperature.
4. ampu is used to automatically control the temperature, time and frequency of nacelle up and down.
5. parameters can be preset at anytime. The preset and real data can be displayed alternately in time.
6. automation: auto-test, auto-diagnose, auto-alarm.
technical parameters:
basket assembly 1
nacelle up and down frequency 30 - 32 timemin
nacelle up and down range 54-56 mm
automatic time range 1-900 minutes
time accuracy +- 0.5 minute
the cubage of beaker 1000 ml
the quantity of glass tube 6 pcs
controlling temperature range room temperature to 45 â°c
accuracy of controlling temperature +- 0.5 â°c
power 600 w
power supply ac, 220v50hz or 110v60hz 1 phase
net weight 11 kg
overall size 260 x 300 x 420 mm
