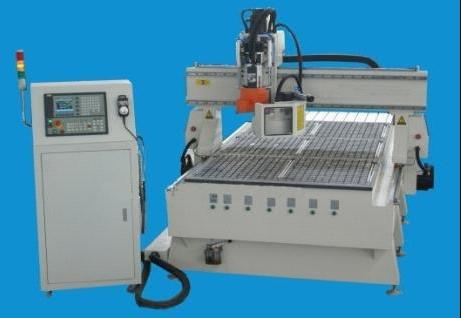

Automatic Tool Changer CNC Router

₹ 2.70 Lakh / 100000 100000 Piece

MOQ1 Piece(s)
Vacuum performance230L/h
Drive Motors Servo Motors and Drivers
X.Y Working area(MM) 1300*2500
Z Working area(MM)300
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Max working speed 35m/min
Spindle cooling style Air cooling
Resolution 0.005mm
Vacuum performance230L/h
X.Y Working area(MM) 1300*2500
The number of knife 10pcs/8pcs/6pcs(option)
Spindle speed 24000r/min
Z Working area(MM)300
Drive Motors Servo Motors and Drivers
Max. Power Consumption(Without spindle)6kw
Command HPGL. G code
Working Voltage AC380V/50/60Hz,3PH
Repeatability 0.01mm
Spindle power 8kw(HSD)

We are offering automatic tool changer cnc router with disk tool bank.
1. pc-1325atcd a automatic tool changer cnc router with disk tool bank. It only need 8 seconds to change one tool. z axises adopt ballscrew, high precision, the structure is more stable.
2. adopt japan yaskawa servo motor ,built-in encoder,it can stop automatically when graunch happens,so can avoid accidents .
3. italy hsd air cooling spindle with too changing, high power , original cutters , high precision .long lifetime.
4. whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.the side board of gantry adopt steel structure.
5. all adopt imported square oribit ,two line sliding track, heavy loading, stable working , high precision and long lifetime.adopt imported ballscrew , high precision.
6. taiwan control system: the embedded numerical control system based on windows platform can upgrade the functions infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3d space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (such as mastercam,typ3,ug,artcam,caxa).
7. 6 zones vacuum table, special wood door engraving area make the products more perfect.
