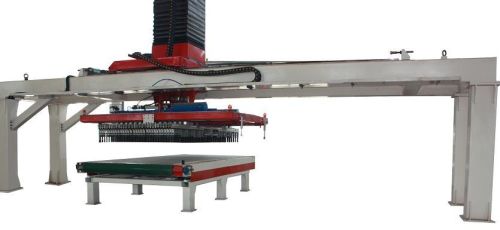

Automatic Unfired Brick Stacking Machine

We are offering automatic unfired brick stacking machine, which are used to pick up the grouped billet automatically (wet billet or dry billet) and put down them to the assigned position of the kiln car, and suitable for both once brick setting system and twice brick setting system. There are many ways to putting down the billet ,such as putting down billet in face up or putting down billet in side face. The type of brick stacking machine can be designed according to user’s demand.
type production capacity (pieces/hour) weight (kg) dimension (mm)
zmp460×2 4600 13500 8000×5980×7570
zmp690×3 7400 14000 11500×6010×6610
zmp460×2×2 8615 16500 12440×6010×6610
zmp923×4 8615 16500 12440×6010×6610
zmp731×3×2 11270 9000 11850×3782×5000
zmp3×2a 12960 16264 17390×6680×6453
