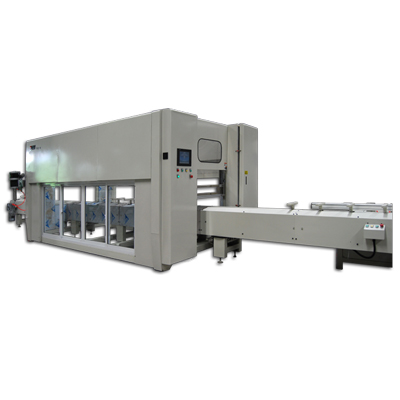

Automatic UV Spray Painting Machine, Brand Name : SENLIAN

Furniture uv spray painting machine
function: it is improved the working process based on automatic spray painting machine for connecting uv spray painting with uv curing and other machines directly.
It is still equipped with advanced precision hardware and most intelligent six-axis spray system which can easily spray five sides of board continuously, ensure highly uniform film without any sagging of paint. This design is very suitable for uv furniture board, you can spray and connect to uv curing in line which will save paint more than 30% and increase efficiency more than 50% instead of manual spraying for good and all.
Â�¢ application filed:
furniture, wardrobe, cupboard, etc.
Â�¢ application board:
solid wood board, ply, mdf, mfc, pb, etc.
Â�¢ application paint:
uv, pu, pe, water paint, etc.
Technical parameters
max working width 1000mm
max working thickness 80mm
working length 300-20002400mm
speed of spray gun 0-1500mms
paint pump plunger type, 1:30
caliber of spray gun î¦1.0-1.5mm
angle of spray gun 0-20 degress
air pressure 0.6-0.8mpa
communication cable 0.2mm
full power 5.4kw 380v
estimated weight 3000kg
overall dimensions 11000*2400*2500mm
main parts
servo electric motor delta
frequency converter shihlin
air pressure aintac
electric motor unis
communication cable helukabel from germany
linear guide rail thk from japan
spray gun graco from america
paint pump graco from america
electrical appliance schneider from germany
control system 1004c high speed spray and five-axis system, lcd screen
