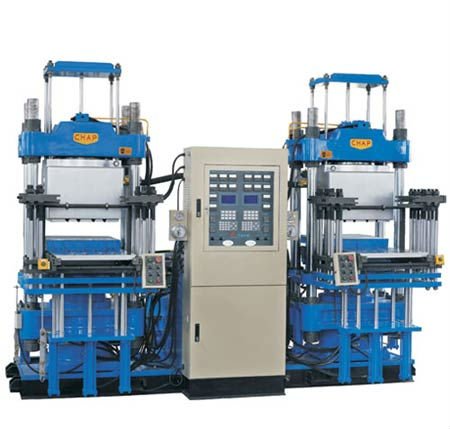

Automatic Vacuum Vulcanizing Press, Brand Name : Jinrunqi

₹ 90,500 / 100000 100000 Set

MOQ1 Set(s)
Brand NameJinrunqi
Country of OriginQingdao
Supply TypeManufacturer
Preferred Buyer Location All over the world

type 100t 200t 250t 300t 500t stroke(mm) 250 250 250 250 300 working table (mm) 400x400 503x508 600x600 650x650 650x740 piston diameter(mm) 250 355 400 450 560 electrical....

Company Information

Qingdao Jinrunqi Rubber Machinery Co.,Ltd

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2007

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

type 100t 200t 250t 300t 500t
stroke(mm) 250 250 250 250 300
working table (mm) 400x400 503x508 600x600 650x650 650x740
piston diameter(mm) 250 355 400 450 560
electrical heater(kw) 13 13 15 15 17
motor hp(kw) 10hp 10hpx2 10hpx2 10hpx2 15hpx2
vacuum pump motor(kw) 4hp 4hp 4hp 4hp 4hp
total power(kw) 20 28 30 30 32
mold opening method up liter/down drop in/out-mold 2rt(front ejector) 3rt(middle mold)4rt(top mold)
1 plate vulcanizing can go up and down automatically as well as air release .curing time counting ,giving an alarm when
curing completed and die open meanwhile ,it can improve production efficiency
2 the parameters of curing time,times of air release, air release an be easily set ,machine equipped with auto pressure function .
3 electric system adopts plc control ,convenient,accurate and correct.
