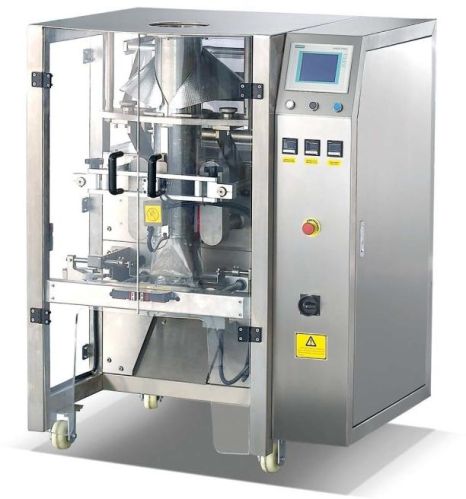

Automatic Vertical Form Fill Seal Packaging Machine 420/520:

We are offering automatic vertical form fill seal packaging machine.
Suitable for many kinds of measuring equipments,and film in roll forming and sealing,mainly for food and non-food industry,such puffy food,peanut,popcorn,cornsugar, mealseed,nails and salt etc. This machine can make pillow bag, pillow bag with gusset etc.
Feature:
1).siemens plc control system, more stable and accuracy output signal, bag making, measuring, filling, printing, cutting, finished in one operation;
2).separate circuit boxes for pneumatic and power control. Low noise, and more stable;
3).film-pulling with servo motor for precision, pulling belt with cover to protect moisture;
4).open door alarm and stop machine running in any condition for safety regulation;
5).film centering automatically is available (optional);
6).only control touch screen to adjust bag deviation. Simple operation;
specification:
model: sw-p420: sw-p520
packing speed: 55 bagsmin: 55 bagsmin
bag size: (l)80-200 (w) 50-210mm: (l)80-350 (w) 50-250mm
bag style: pillow bagsquare bottom: pillow bagsquare bottom
max packaging film width: 420mm: 520mm
thickness of film: 0.04-0.09mm: 0.04-0.09mm
air consumption: 0.8ps 0.25m3min: 0.8ps 0.25m3min
main powervoltage: 2kw 220v 50hz: 2kw 220v 50hz
dimension: l1110×w800×h1130mm: 1430×(w)1200×(h)1700mm
the weight of switchboard: 350kg: 680kg
