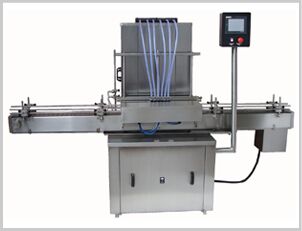

Automatic Viscofill Liquid Bottle Filling Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

“GMP’s” Automatic VISCOFILL Liquid Bottle Filling Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the....

View More Details

Send Enquiry

Company Information

GMP Equipments Pvt. Limited

Prahlad Nagar, Ahmedabad, Gujarat

View Number

Member Since 18 Years
Nature of Business Retailer
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

“GMP’s” Automatic VISCOFILL Liquid Bottle Filling Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine works on VOLUME=TIME TECHNOLOGY AND SPEED=FLOW RATE. The unit is made compact, versatile and S.S. body. “No container-No filling” system arrangement is standard features of the machine. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body.

Operation:

Containers moving on S.S. Slat conveyor, feed below the filling nozzles through a settable twin pneumatically operated stopper system. The twin pneumatically operated stopper system and reciprocating nozzles can precisely match for centering of container below nozzles, to avoid spillage of liquid on container. To minimize foaming adjustable nozzle will reciprocate according to filling dose, nozzle will go upwards from bottom level of bottle towards neck during filling. “No container-No filling” system arrangement is standard features of the machine. The motor for filling is servo drive and conveyor drive is AC Motor with synchronized variable AC Frequency Drive. PLC Controller provided to set fill volume, speed of conveyor and set fill timing this means fill size can be easily set.

Salient Features:

• Accuracy ± 0.8 % or 0.5 Gram in single doze (Whichever is higher).
• No change parts require.
• Individual volume control for all syringes.
• Different speeds can be set, depending on fill volume and foaming nature of material
• Body covered with SS sheet.
• All contact parts silicon tubing / S.S.316.
• A unit to fill variety of liquid and can be used for various type of containers.
• No dripping or last drop problem
• No contamination
• No maintenance required
• No bottle no filling system.
• Facility provided for the fine tuning of the volume
• Inbuilt protection against over current, voltage fluctuation, short circuit in ac frequency drive.
• Ideal for aseptic, sheer sensitive, viscous, and corrosive liquids also.

Model		2HS	4HS	6HS	8HS
Output/Hour*		Up to 3000 Nos.	Up to 5000 Nos.	Up to 7200 Nos.	Up to 9000 Nos.
Direction of Movement		Left to Right	Left to Right	Left to Right	Left to Right
Number of head/Nozzle		2 Nozzles	4 Nozzles	6 Nozzles	8 Nozzles
Fill Size		5 ml to 500 ml	5 ml to 500 ml	5 ml to 500 ml	5 ml to 500 ml
Electric Specification **	Filling Section	0.7 KW / 415Volts / 50 Hz. X 2 Nos.	3.00 KW / 415Volts / 50 Hz. X 4 Nos.	3.00 KW / 415Volts / 50 Hz. X 6 Nos.	3.00 KW / 415Volts / 50 Hz. X 8 Nos.
Electric Specification **	Conveyor	0.5 HP / 415 Volts / 50 Hz.	0.5 HP / 415 Volts / 50 Hz.	0.5 HP / 415 Volts / 50 Hz.	0.5 HP / 415 Volts / 50 Hz.
Height of Conveyor **		860 to 910 mm Adjustable.	860 to 910 mm Adjustable.	860 to 910 mm Adjustable.	860 to 910 mm Adjustable.

Container Neck Diameter**		Minimum 25 mm , Maximum 57mm***
Container Size**	Round Shape	Ø 28 mm to Ø 100 mm Respectively height 45 mm to 240 mm
Container Size**	Flat / Square	50mm to 125 mm (Length) Respectively 35mm to 60 mm (Width) Respectively height 75 mm x 275 mm
