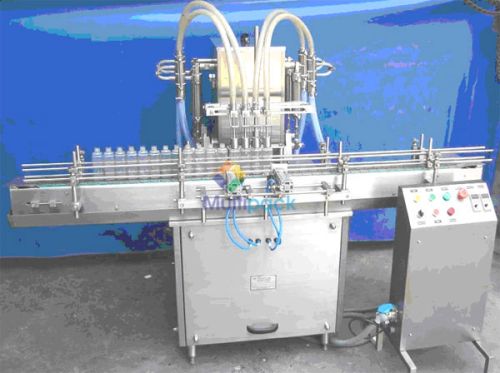

Automatic Volumetric Liquid bottle filling machine, which is made compact, versatile and enclosed in stainless steel elegantly matt finish body. This unit works on volumetric principal and reciprocating self-centring device.
OPERATION :Nozzle goes upwards slowly from the bottom level of bottle towards neck during filling to minimize forming adjustable nozzle is reciprocating according to filling dose The dosing block with a hexagonal bolt, this means different fill size can be set easily within minimum of time. The main drive consists of a helical gearbox driven by A/c motor & through controlled by an Ac frequency drive. The speed can be set in terms of bottles per minute. The conveyor drive consists of a hallow shaft, geared motor controlled by an Ac frequency drive. A knob can set the speed of conveyor.
Â
SALIENT FEATURES| Model | SBLF-100 | SBLF-150 | SBLF-200 |
| Output/Hour | 2400 to 6000* | 3600 to 9000* | 5000 to 12000* |
| Direction of Movement | Left to Right | ||
| Number of head/syringe | 4 Nos. | 6 Nos. | 8 Nos. |
| Fill Size*** | 5 ml to 1000 ml | ||
| Electrical Specification** Main Machine Main Machine | 1 HP /415 Volts / 50 Hz. (1.5 HP if maximum volume is 1000 ml in single doze) 0.5 HP / 415 Volts / 50 Hz. | 1.5 HP /415 Volts / 50 Hz. (2 HP if maximum volume is 1000 ml in single doze) | |
| Height of Conveyor | 860 mm to 910 mm adjustable. | ||
| Machine Dimension | 2135 mm (L) x 1150 mm (W) x 1610 mm (H) | 2135 mm (L) x 1350 mm (W) x 1610 mm (H) | |
| Case Dimensions | 2350 mm (L) x 1350 mm (W) x 1650 mm (H) | 2350 mm (L) x 1550 mm (W) x 1650 mm (H) | |
| Net Weight | 600 Kgs. | 700 Kgs. | 850 Kgs. |
| Gross Weight | 850 Kgs. | 950 Kgs. | 1100 Kgs. |
| Change parts required | (A) Syringes. / (B) Nozzle / (C) Inlet & outlet hose pipe | ||
