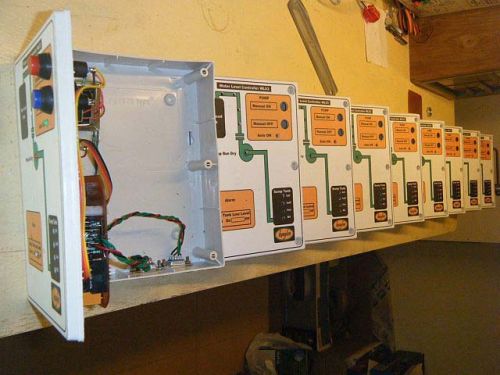

Automatic Water Level Controller

We are engaged in the production and supply of Automatic Water Level Controller. The range of Automatic Water Level Controller made available by us is designed using the best technological advances. Our range of Automatic Water Level Controller can be availed at the best prices in the market.
WL 01 (Base Model)

• Pump auto on/off depending on over head tank level (in auto mode)
• Pump on/off manual override
• Auto resume after power failure
• Weather proof electronic level sensor for OHT only (eliminates conventional electromechanical float switch
• Capable of switching 2.5 hp single phase pump ( can be customised for higher rating)

WL03 (Water Level Management System)
Pump run dry cut off to protect motor (delay preset to 30 sec)

• Pump run dry momentary override switch to ensure initial pump prime (optional)
• High / low voltage cut off to (170v-260v)
• Fancy pump run led display
• Sump tank level indicator
• Overhead tank level indicator (optional)
• Sump tank preset low level alarm with mute switch
• Switch off pump when sump tank goes dry
• Keeps track of total volume pumped (optional)

NB

• The product can be customized to suit individual requirement and layout.
• Industries having multiple water tanks that need monitoring can send their enquiry along with photos and P&ID diagrams of their setup.
• This product is designed assembled and tested in house b y our team of quality eccentric engineers and technicians. Our burning test simulates worst case scenario to check any weak links before the product is tagged ready to go

House Hold Advantages

• Protection to Pump Motor against Voltage surges
• Protects pump from running dry and eventually coil burnout
• Saves water and electricity thus contributing towards a greener environment
• Protection of sediment filter of household equipped with RO systems
• Protection of water inlet solenoid valves of washing machines due to dry over head tank while washing in progress
• Reduced water and electricity bills due to efficient switching of pump

Industrial Advantages

• Efficient water level management, thus saving process time, etc.
• Saves water and electricity and damage to environment
• Reduces utilization of manpower to manually monitor tank levels
• Ensures uninterrupted water supply to pump thus saving pump from running dry and further damage
• Can be connected to data logger to log total volume pumped in any given time interval

Applications

• Bungalows
• Residential Complex
• Hotels
• Cooling Towers
• Power plants
• Automation of any industry needing monitoring of their bulk water tanks.
