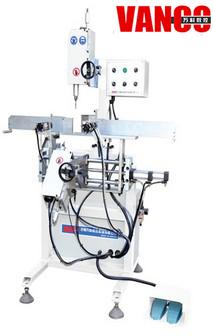

Automatic Water Slot Milling Machine

We are offering automatic water slot milling machine for pvc profile lxca-60
function:
milling all kinds of water slot and air pressure balance groove.
Features:
1. Full designed with high rigidity, it can process beautiful and high appearance quality water slot.
2. Automatic cutter changing of the down head, two water slots of both ends of profile is processing in one time clamping.
3. High efficiency, suitable for mass production.
4. Special feeding system, no need special maintenance, high mills quality.
5. Convenient adjustment for the cutter position, which is suitable for different kinds of profile.
6. Water slot milling length adjustable within 60mm, wide adaptability.
7. Adopt linear bearing motion to ensure the processing precision in a long term.
Technical parameter:
air pressure: 0.5~0.8mpa
air consumption: 30lmin
power supply: 220v50hz
input power: 1.14kw
main spindle revolving speed: 25000rmin
cutter diameter: ï�5mm, ï�8mm (it is optional)
slot length: 30~60mm
dimension: 1200mm*1200mm*1800mm (l*w*h)
weight: 300kg
