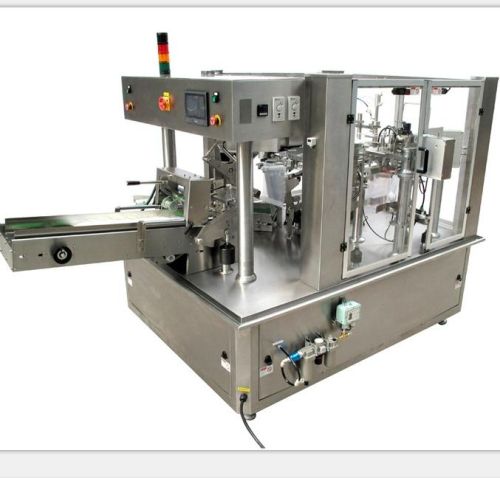

Contact SupplierWe are offering automatic weighing machine, auto packaging machine.
1. Application
this automatic packing machine unit is specialized in the powder and granular, such ascrystal monosodium glutamate, wash clothes powder, condiment, coffee, milk powder, feed.
It is mainly for pre-made bag packing
2. Working procedure
total 8 working position as following:
1). Pouch conveyor feeding & pickup
2). Date coding & zipper open device (option)
3). Open the bottom of pouch
4). Pouch top opening
5). first filling position
6). second filling position(option)
7). first sealing position
8). Second sealing position(cold seal) and pouch feed out conveyor
specification:
model sw-8-200
working position eight-working position
pouch material laminated filmpepp etc.
Pouch pattern stand-up, spout, flat
pouch size w:100-210 mm l:100-350 mm
speed 50 pouches min
weight 1200kgs
voltage 380v 3 phase 50hz60hz
total power 3kw
compress air 0.6m3min(supply by user)
