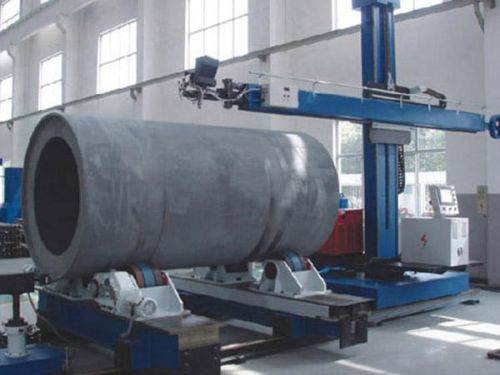

Automatic Welding Machine

We are offering Automatic Welding Machine.
details of automatic welding machine/automatic pipe welding machine
1. product description:
this automatic welding manipulator can weld various seams for metal containers, metal welding component in various ways. it is widely used in wind and electrical equipment, the pressure vessel, petrochemical, pipe and steel, the boiler, shipbuilding, repair welding and many other industries. according to customer requirements, it can be installed electrical extension unit inside telescopic arm operator's seat and safeguard ladders,but also supporting a variety of tracking and monitoring, arc oscillation,transmission devices of flux recovery. manipulator control system using digital control, easy operation, precise control, and other equipment to facilitate linkage control.
welding manipulator is divided into small, medium, heavy three types; four structural forms are fixed, fixed rotating, fixed mobile and mobile rotating.
specification
2×2
3×3
4×4
5×5
6×6
7×7
8×8
up/down stroke of boom(m)
2
3
4
5
6
7
8
optional up/down stroke of boom(m)
2~4
2.5~5
3~7
3~8
4~8
4~8
4~8
rotating angle of the column(°)
±180°
the up/down speed of boom(mm/min)
850
1150
expansion speed of boom(mm/min)
140~1400
rotating speed of column(r/min)
0.2
the total load of boom
100
200
300
400
500
500
500
distance c to c of the track(optional)
2000/2500
2. payment term
30% down payment after the contract, 70% before shippment.
3. after sales service
our technicians can fix and test the machine for the customer.
we offer at least one year full service if the machine is proper used, after one year, the spare parts will be offered at cost. if our technician needed, all cost on the buyer.
