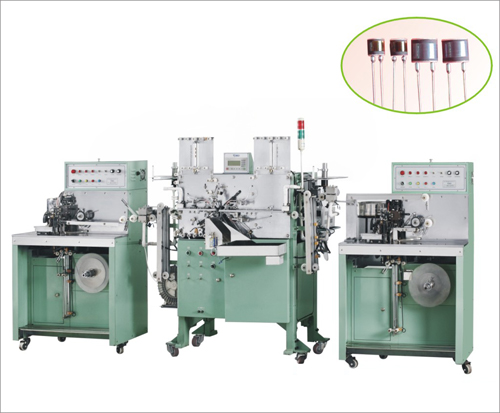

XINGCHENGJIE Automatic Winding Machine

We are offering automatic winding machine.
device characteristics.
1.the device for the production of high-frequency capacitance and low resistance series capacitor of solid sub-prime.
2.the device uses dual servo spindle and reel positioning device, machine go foil winding and nail length and speed can be set in the chinese display, conveninet adjustment, fault location can be the first time responses on the screen.
3.the equipment uses seven dymanic vaccum and the various anti-scratch device. Can effectively guarantee the minumal volume of dust inside the product . Thereby reducing the short-circut phenomenon products.
4.vaccum way nails machine guided needle absorption and desription, copper and iron guid pin can be used. With a negagive outsourcing or outsourcing options electrolynic paper, complete with tape or glue can choose the setting mode.
5.nailed curved and mold level by way of option modules. Can effectiely reduce the impedance , simple and quick.
applicable standard
foil length 50-260mm
electroylic paper width 4.5-10.6mm
the number of nail needle 3-4
complete way glue or tape
mechanical speed
φ5x11l 55-60
φ6x12l 50-55
φ8x14l 40-45
φ10x16l 35-40
Configuring Specification Features:
1, Negative Outsourcing, the negative pole at the bottom
Role: To enhance the internal heat capacity of the capacitor
2, Lead site pad of paper
Role: To prevent the capacitor leads in the work area overheating, resulting in the breakdown of electrolytic paper and caused short-circuit
3, Pre-punching device
Effect: To reduce producing aluminum dust when formation of nails rivet, reduce product short-circuit probability.
4, Partial core wire detection and correction
Role: Reducing the inductance and impedance for capacitor under high frequency.
5, Guided needle righting device
Role: To prevent the guide pin skew nailed or deflection nailed when it's nail riveted.
6, Synchronous winding device for winding needles with different size.
Role: To effectively ensure the element without phenomenon of non-core pulling.
