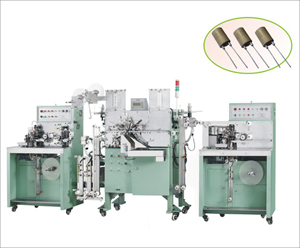

Automatic Winding Machine

We are offering automatic winding machine.
device characteristics.
1.the winding three -in -one nail reliable performance, enhance space utlization, non-traditional aluminum fitting and mixing problems, reduce labor and material costs.
2.this machine adopts plc programmable design circuit designer control over the nail , winding length of the speed set with the text display, fault display directly, set easy to operate.
3.the local optinal vacuum device can absorb the foil ash;other optional short-circuit testing organization can detec sub-prime internal short circut.
4.double or four -lays paper structure of electrolytic paper, aluminium foil,overlapping high volume electrolysis paper can be short. Is 12-18 in the high voltage products for the machine the best choice.
5.negative foil guid wire nail machine on the flat before the department si adding a layer of aluminum foil, increase the capacitor in a dynamic exchange of work against the abiity of microwave to prevent short circuits caused by excessive current breakdown.
6.can choose to complete way to glue or tape device, can also chose t dua-function, according to different products to choose the best way to completion.
7. This model may choose to make products with high pressue cusion the negative foil. Pre-punching.pad of paper.short-circuit repair and other functioins. Thereby improving product quality.
applicable standard
foil length 500-800mm
foil width 10-26mm
electroylic paper width 12-29mm
the number of nail needle 3-7
roll pin diameter φ2.5 φ3.0 φ3.5
complete way: glue or tape
mechanical speed
φ10x16l 53-56
φ12-20l 42-50
φ13-20l 25-30
φ16x25l 20-35
φ18x36l 15-25.
Configuring Specification Features:
1, Negative Outsourcing, the negative pole at the bottom
Role: To enhance the internal heat capacity of the capacitor
2, Lead site pad of paper
Role: To prevent the capacitor leads in the work area overheating, resulting in the breakdown of electrolytic paper and caused short-circuit
3, Pre-punching device
Effect: To reduce producing aluminum dust when formation of nails rivet, reduce product short-circuit probability.
4, Partial core wire detection and correction
Role: Reducing the inductance and impedance for capacitor under high frequency.
5, Guided needle righting device
Role: To prevent the guide pin skew nailed or deflection nailed when it's nail riveted.
6, Synchronous winding device for winding needles with different size.
Role: To effectively ensure the element without phenomenon of non-core pulling
