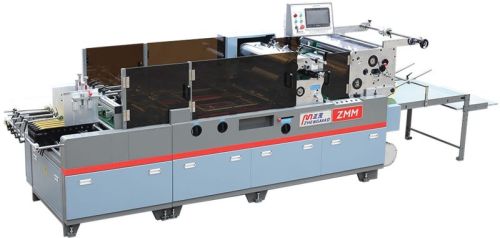

Automatic Window Patcher

Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

Feeding Unit Independent servo control motor instead of traditional clutch control system was adopted for intermittent belt conveying. Intermittent delivery distance can be adjusted....

View More Details

Send Enquiry

Company Information

Subasolutions

Vandalur, Chennai, Tamil Nadu

View Number

Member Since 3 Years
Nature of Business Trader

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Feeding Unit

Independent servo control motor instead of traditional clutch control system was adopted for intermittent belt conveying. Intermittent delivery distance can be adjusted according to the length of the paper. Paper feeding from the bottom, realized continuous paper feeding without stopping the machine. Compared with traditional machines, the increase of excessive paper production mechanism is more stable.
Gluing Unit
Single high-hardness stainless steel tube rollers transmit the glue. The tube rollers are equipped with a sliding block which can quickly regulate glue thickness. Flexible template gluing is adopted, and the template shop can be engraved according to product requirements. The roller for template installation is graved with a base line, and the template installation is accurate, convenient and quick. Left and right position for gluing can be adjusted freely. Front and back position are adjusted with an adjusted which can adjust front, back, left and right position for gluing without shutdown. When being cleaned and maintained, the glue device can be pulled out. It can be cleaned and maintained more conveniently.

Model	TC-800H	TC-1050H
Blank length(mm)	100-750	100-750
Blank width(mm)	80-800	80-1050
Film length(mm)	60-520	60-520
Film width (mm)	30-520	30-840
Paper weight	250-150 /㎡≤4mm	250-1500 /㎡≤4mm
Film Thickness (mm)	0.03-0.2mm	0.03-0.2mm
Mechanical speed	≦400/18000pcs/h	≦400/18000pcs/h
Positioning accuracy	±1mm	±1mm
Power voltage	380v/50Hz	380v/50Hz
Machine power (kw)	10	12
Machine weight(About)	4000KG	4500KG
Dimension（LWH/mm）	598012501650	598014701650
