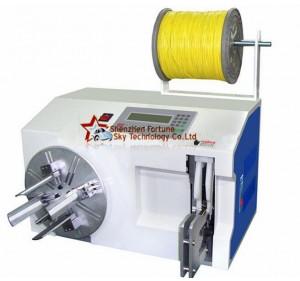

Automatic Wire Cable Coiling Cum Tying Machine

MOQ1 Piece(s)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

This Automatic Wire Cable Coiling Cum Tying Machine is equipped with stepper motors, adopted PLC touch screen to control cable tie length, automatic cut the cable tie and twist it. The winding....

View More Details

Send Enquiry

Product Details

This Automatic Wire Cable Coiling Cum Tying Machine is equipped with stepper motors, adopted PLC touch screen to control cable tie length, automatic cut the cable tie and twist it. The winding speed and winding cycle are both adjustable. This machine is widely used to process AC/DC power cord, USB data cable, video cable, HDMI cable, and other types of transmission line.

Model No.	TQ5-30	TQ 15-45
Applicable Nylon Tie Binding Length	65-140 MM	110-190 MM
Binding Diameter	5-30 MM	15-45 MM
Binding Speed	1 second per binding
Winding Spacing	50-200 MM	50-250 MM
Winding Speed	1-10 circles (adjustable)
Working Voltage	AC220 50/60HZ
Power
