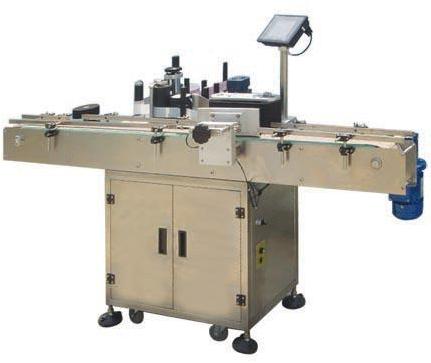

Automatic Wrap Around Labeling Machine, Packaging Type : silver

We are offering automatic wrap around labeling machine.
jt-510 automatic bottle label machine
a. for automatic labeling on round bottles for the pharmaceuticals, daily chemicals, food & beverages industries.
b. the labeler will automatically detects the label size and bottle diameter and set the appropriate labeling parameters – a very useful feature for users with multiple products to label.
c. it is an optimal combination of speed, accuracy, stability, gmp standards, ease of use, and flexibility.
d. backed by a strong engineering team who is ready to provide custom solutions for the unique production needs of different customers.
feature:
1. Plc combined with human/machine interface digital lcd touch screen controller;
2. Precision stepper motor driven on labeling head;
3. Stainless steel frame construction and components are standard;
4. Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling;
5.no change parts requirements.
6.very less down time for change over.
7. Automatic infeed turntable diameter 550mm(optional);
8. Hot foil printer is available(optional)
technical parameter:
1. model no jt-510 (automatic self adhesive bottle labeling machine)
2. label width 10-150mm
3. label length: 20-350mm
3. labeling speed: 0-25 m/min ( 20-150bottles/min)
4. bottle diameter: below 120mm
5. labeling accuracy: ±1mm
6. power supply 420w 110v/220v 50/60hz
7. machine size l1500 w700 h1450 mm
8. reel inner diameter 75mm
9. reel outer diameter max 360mm
10. Net weight 200kg
