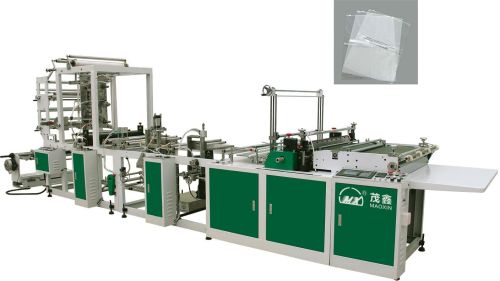

Automatic Zipper Bag Making Machine

We are a well known manufacturer, supplier and exporter of Automatic Zipper Bag Making Machine based in Hanoi, Vietnam.The machine supplied by us is widely used in making of bag such as clip chain bag, double inside folded bag, zipper garment bag, etc. Our machine has some special features such as liquid crystal display screen. The feeding device is equipped with automatic correction and magnetic powder tension control, automatic temperature control. The machine works with a speed of 30-150pcs/min and requires a power of 6.5kw-7.5kw.

Main technical parameters :

• Model mxrqd+z-700 mxrqd+z-800 mxrqd+z-1000
• Max.bag width 700mm 800mm 1000mm
• Max.bag length 40-700mm 50-700mm 50-800mm
• Machine speed 30-150pcsmin 30-130pcsmin 30-120pcsmin
• Adapt film thickness 0.02-0.20mm 0.02-0.20mm 0.02-0.20mm
• Tolerance ±1mm ±1mm ±1mm
• Power required 6.5kw 7.2kw 7.5kw
• Machine size 5.8x1.25x1.5m 5.8x1.35x1.5m 6.1x1.55x1.6m
• Machine n.w 1150kg 1250kg 1450kg
