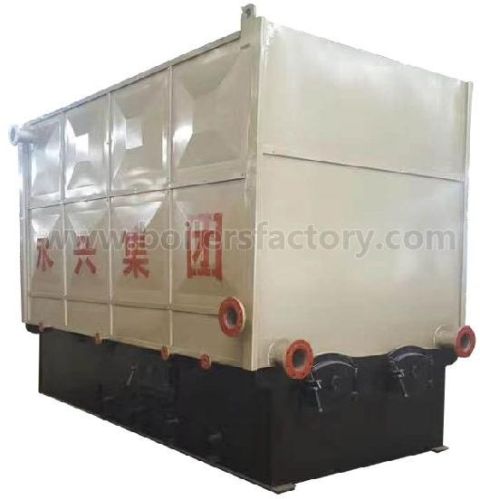

Automatically Solid Fuel Boiler

YLW Horizontal Automatically Solid Fuel Boiler

Power: 700kw/h-14000kw/h (0.7mw/h - 14mw/h)

Pressure: 0.7Mpa-2.5Mpa

Fuel:Coal, Biomass pellet, Rice Husk, Bagasse, etc.

Horizontal Automatically Solid Fuel Boiler Description

YLW series organic heat transfer material coal boilers are assembly type forced circulation horizontal automatic feed chain grate boilers. The boiler body structure is compact, heating surface is formed by the internal and external heating densely disc tube, inside pipe is for radiation heating, outside tube and the outer surface of inside tube form the convection heating surface. Boiler is made of the upper body and the lower part combustion chamber, field assembly. After fuel bum full in the combustion chamber, and radiation heating surface absorb most of the quantity of heat, flue gas of high temperature enter into the convection heating surface, the flue gas will be sent to chimney through the filter by induced draft fan and then will be discharged into the atmosphere.
