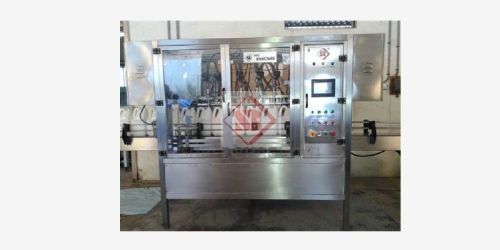

Automic 4 Head Oil Filling Machine, Power : 2 H.P / 230 V.AC

Get Latest Price

Machine WeightApprox 400 Kgs
Power2 H.P / 230 V.AC
PhaseSingle Phase
UsageFilling Liquid in to the Bottles /Containers
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Shree Bhagwati Machtech India Pvt Ltd.

Rakhial, Ahmedabad, Gujarat

View Number

Member Since 10 Years
Nature of Business Manufacturer
GST No. 24AANCS9768F1ZQ

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Machine WeightApprox 400 Kgs
Power2 H.P / 230 V.AC
PhaseSingle Phase
UsageFilling Liquid in to the Bottles /Containers
Machine NameAutomatic Oil Liquid Filling Machine
Conveyor Motor Make0.5 HP Bonfiglioli
Suitable for Packing MaterialHDPE / PET / GLASS / METAL TIN / Aluminum Bottles
Level sensor for hopperLeuze /Sick / Panasonic
Bottle StopperPneumatic Based
Wires & CablesLabb
Conveyor GuideStainless Steel 304 Rod (10mm Round Bar)
Material Collection Tray at the bottom of ConveyorStainless Steel 304
Machine CoveringsComplete in S.S. 304
Slat Chain Size97mm, Pitch - 3.5”, Stainless Steel 304
Machine Motor Make1 KW
Conveyor Gear Box MakeBonfiglioli Ratio: 50:1
Filling Volume Accuracy+/-0.5 %
Working Height860mm ( +/-50 mm)
Machine main base frameMild Steel Angles
Air PipesSMC / Festo / Janatics
Filling SystemFlow meter / gear pump
SensorsLeuze /Sick / Panasonic
Working DirectionLeft to Right - Linear
Compressed Air Required6 bar pressure 0.5 CFM
Emergency StopEmergency push button on conveyor
Number of Filling Heads4 Heads
HMI + PLCDelta / Panasonic
Prevention of DroppingSpecial nozzle with NRV Valve
VFD MakeDelta / ABB
Conveyor Motor0.5 HP 1440 RPM Bonfiglioli
BearingsSKF / Nachi (USA) / Timken (USA)
No Bottle – No FillingWith the help of Sensor
Electrical ComponentsABB / Delta /Spectra
Volume Capacity100ml to 5000 ml with help of change parts
By-Pass PipesSilicon Pipes
HopperStainless Steel 316
ProxyAutonix / Pulset
Slat Chain thickness3mm
Volume AdjustmentHMI + PLC (one time setting)
Plating(Wherever Applicable)Zinc / Hard Chrome / Blackening
Product Contact PartsStainless Steel 316
Up Down MovementPneumatic system
Operating PanelHMI + PLC
Dropping Collection TryPneumatic Based
ConveyorStainless Steel 304
Suitable for ProductsFree Flowing Liquids
Electrical WiringFerrule Numbering on all the wires with Proper Markings
Machine DimensionApprox 12 (L) x 8 (W) x 10 (H) – in Feet
Production Speed Per Hour3200 to 3600 containers per hour Speed Depends upon the Number of Filling Heads, Liquid Foaming Nature, Filling Volume, Neck Size)
PneumaticsSMC / Festo / Janatics
In let & Out Let PipesBraded Hose Pipes
CabinetStainless Steel Structure with Acrylic cover
Non Contact PartsStainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)

Shree Bhagwati group has Installed many different filling line machineries including oil filling machine at worldwide including Bottle / Jar Engine Oil Filling Machine, Lubricant Engine Oil Filling Machine, Engine Oil Liquid Filling Machine, Vegetable Oil Filling Machine, edible oil filling machine, cooking oil filling machine, fillers and cappers into PET, HDPE, Metal and Glass containers, vegetable oil packaging lines for virgin oils, refined oil, palm oil, colza oil, sunflower oil , Rotary Bottle Filling Machine, edible oil packaging, vegetable oil packaging, vegetable oil filler etc.

SPECIFICATION OF THE EQUIPMENTMACHINE’S BASICS
