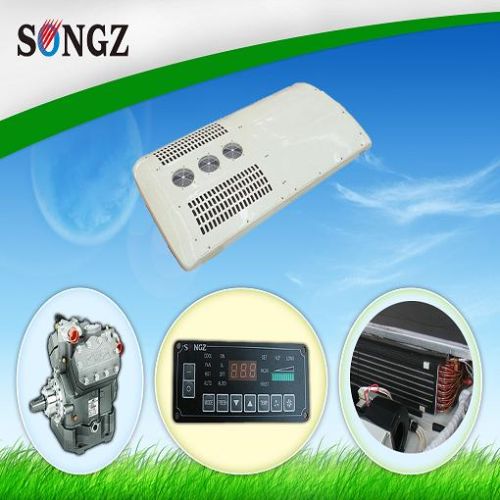

Automobile Air Conditioner Szc-ii/f-d

We are offering automobile air conditioner szc-iif-d.
1 autmobile air conditioner used for long distance coach and tourist bus
2 small dimension
3 low cost
4 easy for maintennance
1. We are the only listed company[002454. Sz] producing automobile air conditioner in china.
2. Sales of our company: the sales quantity of roof mounted bus air conditioners reached 32,000 sets in 2010 and has kept the lead position for 8 years in china and 7 years in the world. We hold above 35% market share in china. We supply air conditioners for more than 60 bus manufacturers in china. Our products have been exported to south asia and southeast asia, africa, middle east, europe, america and so on.
3. The advantages of the szc series:
(a) the roof-mounted unit owns a streamline outline, taking on a nicer and more handsome apperance.
(b)the heat-exchanger adopts tube-fin type heat exchanger of 7mm insind screw thread copper tube, therefore making high energy efficiency ratio and low oil comsumption.
(c) dighital-displayed automatic temperature control.
(d) good servicing inerchangeablity and accessibility.
4. The type szc-iif-d is for the city buses of which the length is between 8.4~8.8 meters.
5. The detail attributes of the szc-iif-d automobile air conditioner.
no.
description
brand
feature
1
compressor
bitzer
famous brand, beijing bitzer, high reliability
2
evaporator blower
songz
imported axletree,high efficiency,long life time with 6000 hours
3
condenser fan
songz
imported axletree,high efficiency,low noise,long life time with 6000 hours
4
expansion valve
danfoss
first-class brand, high reliability
5
dryer
songz
completely radial sealing,complete radial direction seal
6
pressure security device
songz
protecting the elements and components from being damaged by abnormal pressure,high precision
7
plug-in connector
amp
wholly silver coated, corrosion-resistant to acid, alkali and salt, water and dust proof.
8
heat exchanger
songz
φ7 inside screw-thread copper tube
9
manipulator
songz
digital-displayed temperature type, trouble direction
10
pipeline
songz
copper and complete stainless steel bellows
11
shell
songz
high-strength stainless aluminum lf21 bottom and high strength fiber glass cover.
12
belt(optional)
gatesdongil
the aluminum alloy botton shell raises the intensity glass fiberreionforced plastic lid.
13
compressor bracket(optional)
songz
limiting 5 degree of freedom with vibration absorbing design to reduce the vibration of generator and dramatically lengthen the life.
14
air-returning grill(optional e)
songz
large air-returning area design structure, press forming by mold, attractive and handsome appearance, with high efficiency filter net
15
fresh air system(optional)
songz
driven by the y imported motor
16
generator
prestolite
manufactured by sino-america joint venture prestolite co. ,stable and reliable performance
17
refrigerant(optional)
r134a
green environment-friendly refrigerant
