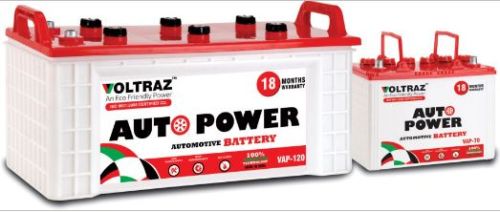

Contact SupplierVoltraz Automotive Range is Manufactured on a state of the fully automatic battery assembly with 100% American Technology, which ensuring optimum performance, extremely long life, reliable and resistance to typically abusive Indian road and Climate.
Providing Double-clad separation in the form of a unique rib-free separator profile, reinforced with texturised glass mat, provides surface support to the active material, thereby improving cycle life and resistance to bumps and vibrations.
Micro-porous filter disc in vent openings help arrest acid fumes and restrict spark propagation inside the battery. Special alloy ensures low water loss during high temperature operations.
Cars Battery
Tractor Battery
Truck Battery
| Model No. | Old JIS No. | New JIS No. | Capacity (AH) | CCA (A) (- 18â�°C) | CA (A) (0â�°C) | RC (min) (25â�°) | Dimensions ( ±3mm) L x W x H | Terminal Type | Battery Wt (± 5%) | Charging Current (Amp) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| at C20 | at C5 | Dry (Kg) | Wet (Kg) | |||||||||
| VAP 320 | NS40R/L | 32B19R/L | 32 | 24 | 200 | 250 | 33 | 197 x 129 x 227 | T1 | 6.16 | 9..26 | 3.2 |
| VAP 350 | NS40ZR/L | 34B20R/L | 35 | 28 | 225 | 250 | 42 | 197 x 129 x 227 | T1 | 6.22 | 9.32 | 3.5 |
| VAP 351 | NS40ZR/L | 38B20R/L | 35 | 28 | 225 | 250 | 42 | 197 x 129 x 227 | T1 | 6.22 | 9.32 | 3.5 |
| VAP 400 | N40R/L | 50B24R/L | 40 | 32 | 250 | 312 | 45 | 238 x 135 x 232 | T1 | 7.3 | 11.5 | 4 |
| VAP 500 | N50R/L | 48D26R/L | 50 | 40 | 320 | 400 | 72 | 260 x 173 x 225 | T1 | 9.2 | 14.9 | 5 |
| VAP 600 | N50ZR/L | 55D36R/L | 60 | 48 | 356 | 445 | 82 | 260 x 173 x 225 | T1 | 10 | 15.61 | 6 |
| VAP 650 | NS70R/L | 75D26R/L | 65 | 52 | 380 | 475 | 89 | 260 x 173 x 225 | T1 | 10.8 | 16.34 | 6.5 |
| VAP 651 | NX100-5R/L | 80D26R/L | 65 | 55 | 380 | 475 | 90 | 260 x 173 x 225 | T1 | 10.9 | 16.44 | 6.5 |
| VAP 700 | N70R/Z | 65D31R/L | 70 | 56 | 410 | 512 | 110 | 306 x 173 x 225 | T1 | 12.2 | 18.7 | 7 |
| VAP 750 | N70ZR/L | 75D31R/L | 75 | 60 | 470 | 588 | 116 | 306 x 173 x 225 | T1 | 12.86 | 19.41 | 7.5 |
| VAP 800 | NX120-7R/L | 95D31R/L | 80 | 64 | 530 | 675 | 125 | 306 x 173 x 225 | T1 | 14 | 20.2 | 8 |
| VAP 900 | N100R/L | 95E41R/L | 90 | 80 | 550 | 688 | 135 | 306 x 173 x 225 | T1 | 14.45 | 20.85 | 9 |
| VAP 1000 | N100ZR/L | 115E41R/L | 100 | 90 | 560 | 700 | 150 | 410 x 176 x 234 | T1 | 16.2 | 25.75 | 10 |
| VAPX 1200 | N120R/L | 115F51R/L | 120 | 96 | 740 | 925 | 220 | 512 x 182 x 257 | T1 | 21.1 | 33.5 | 12 |
| VAPX 1350 | N135R/L | ……. | 135 | 108 | 840 | 1050 | 225 | 512 x 215 x 257 | T1 | 23.5 | 37.7 | 13.5 |
| VAPX 1500 | N150R/L | 145G51R/L | 150 | 120 | 920 | 1150 | 250 | 512 x 215 x 257 | T1 | 25 | 39.4 | 15 |
| VAPX 1650 | N165R/L | …….. | 165 | 132 | 990 | 1250 | 290 | 521 x 278 x 270 | T1 | 28 | 43.5 | 16.5 |
| VAPX 2000 | N200R/L | 190H52R/L | 200 | 160 | 1100 | 1375 | 390 | 521x 278 x 270 | T1 | 32.42 | 51.66 | 20 |
