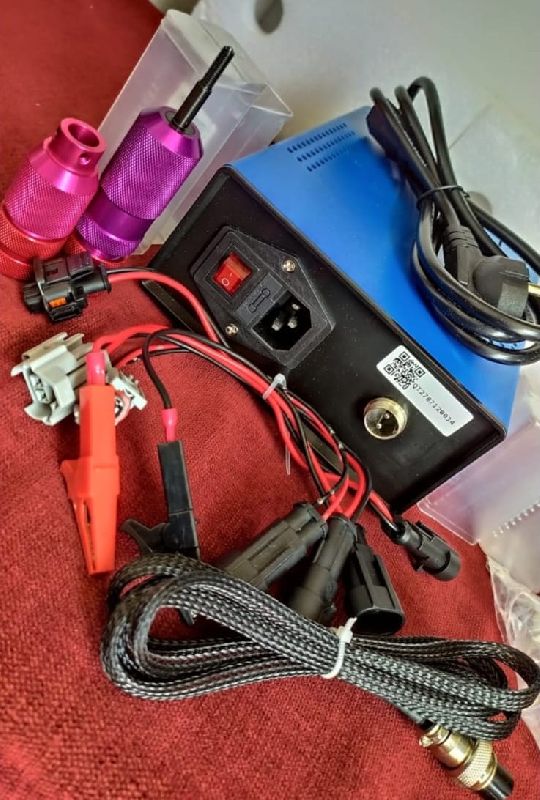

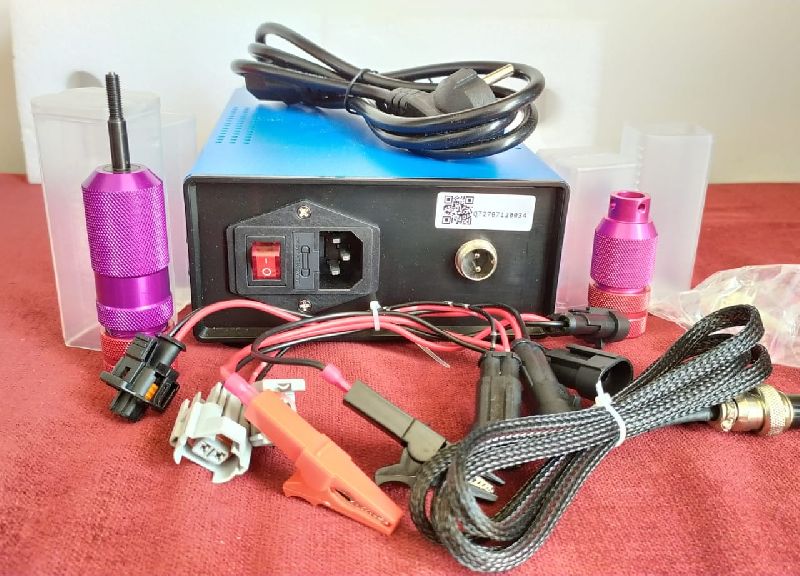

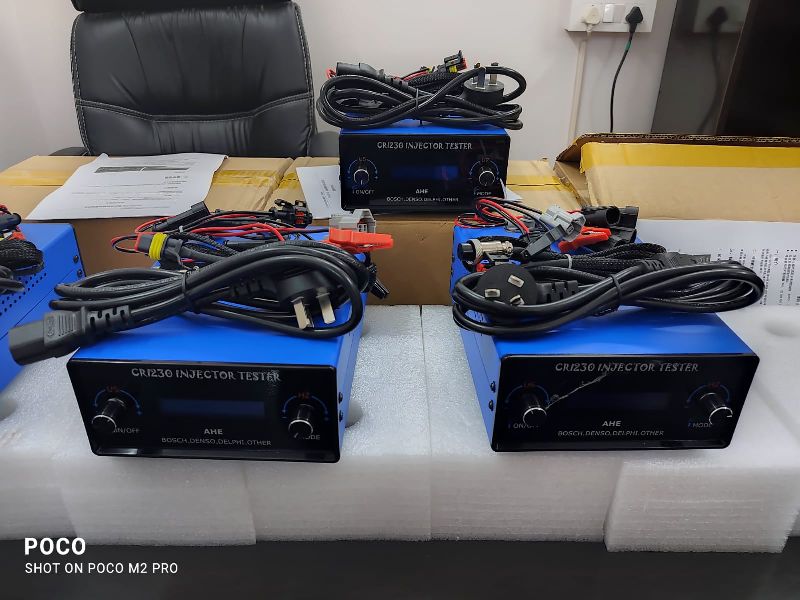

CRI 230 Common Rail Injector Tester With AHE Function

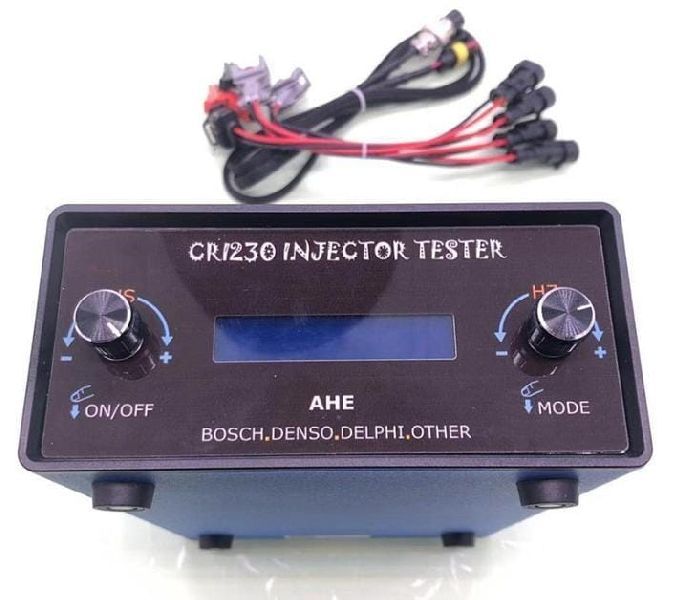

CRI220/230 High pressure common rail Injector tester with Strok tester user manual :- Support magnetic injectors（BOSCH, DENSO,DELPHI, CAT） :- Overcurrent and short circuit protection :- Injector dynamic stroke measurement AHE, only supported by CRI230 1、 Brief introduction :- CRI220/230 high pressure common rail injector tester can drive common rail injectors such as Bosch, Denso, Delphi, CAT, etc. The test conditions can be set by the user according to their actual conditions, which is convenient for maintenance personnel to the high pressure common rail injector. Judgment and maintenance of working conditions under different working conditions. 2、Check the accessories :- After receiving the goods, please open the box and check box items are consistent with the packing list immediately if any parts are missing, please contact the service personnel. 3、Operating Instructions:- A ON/OFF knob, Press the ON/OFF knob to turn on and off the fuel injector drive; Turn the ON/OFF knob left and right to adjust the pulse width, 0-6000 us; B MODE knob Press the MODE knob to select the injector type (BOSCH,DENSO,DELPHI,CAL_L,CAL_H); AHE MODE is only supported by CRI230; After the AHE is triggered once, it takes 10 seconds to trigger again. Rotate the MODE knob left and right to adjust the injection frequency, 1-30Hz; AHE MODE: 5-16A, only supported by CRI230; After the AHE is triggered once, it takes 10 seconds to trigger again. Rotate the MODE knob left and right to adjust the injection frequency, 1-30Hz; AHE MODE: 5-16A, only supported by CRI230; 4、Warranty Policy 1, normal use, due to product quality problems, free maintenance within one year; 2. If the product is damaged due to abnormal use, the user shall bear the cost of maintenance; 3, product lifetime maintenance, beyond the warranty period, the user bears the cost of maintenance costs. INJECTOR TESTER :- CRI230 high pressure common rail injector tester can drive common rail injectors such as for Bosch, Denso, Delphi, Siemens & CAT, etc. The test conditions can be set by the user according to their actual conditions, which is convenient for maintenance personnel to the high pressure common rail injector. Judgment and maintenance of working conditions under different working conditions. Product main function CRI 230 INJECTOR TESTER 1.Support testing electromagnetic high-pressure common rail injector 2.Pulse width adjustable range: 0 ～ 6000us; 3.Frequency adjustable range: 1 ～ 30Hz; For more information please contact us REGARDING  TEAM TECHNO INDIA
