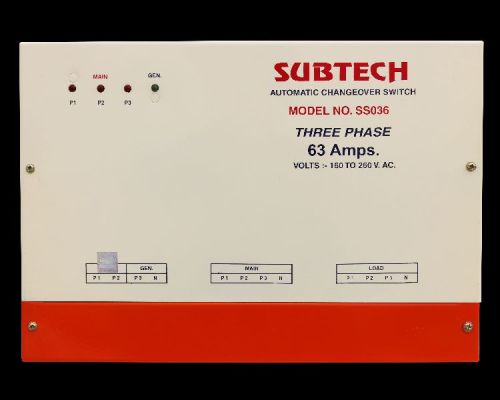

ACCL Automatic Source Changeover, For Control Panels, Phase Type : Triple Phase

SUBTECH makes CLD cum auto changeover, which is a fully automatic high precision system for efficient distribution of individually rationed generator power, an advantageous and cost-effective alternative to conventional manual changeovers. The auto changeover cum current limiting device (CLD) works as a changeover and also gives protection to the generator due to overload and abnormal supply. It is a Micro-controlled Pre-Programed overload protection system for multiple operations, mostly used for generators and power backup in multi-storied societies, malls, apartments, etc.
Features:

• Settable voltage range for mains and Genset
• Settable overload limit for genset
• The auto trip on overload to prevent genset overloading
• Overload trip time will decrease as overload increase
• Once tripped, auto re-starts after 10 seconds (max), and so on upto 5 trials
• An auto trip on under/over voltage on mains and genset to avoid damages to appliances
• Continue glowing LEDs in healthy conditions & blinking LEDs on source waiting and faulty conditions
• After 5 trials, tripped permanently for 3 minutes
• Automatically tries again after 3 min or the user can reset manually or wait for the mains
• Safeguards generator by gradual loading and precision monitoring
• Assured availability of allotted currently; no less, no more
• Significant savings on wall space and wiring.
