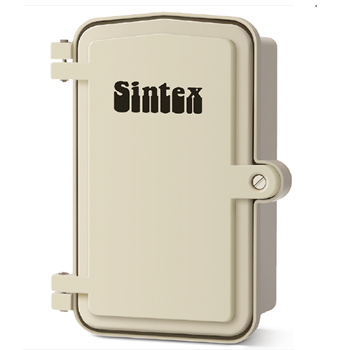

SMC Junction Boxes

ShapeAvailable in different Shape
Number Of FlowerMeter Box
SizeAvailable in different sizes
Brand NameSintex
Supply TypeSupplier, Retailer
Preferred Buyer Location India only

We make available SMC Junction Boxesin standard size of 740*850*270. We have the latest equipment and technology for the strict checking of raw material at the initial stage only. We ensure that....

View More Details

Send Enquiry

Product Details

We make available SMC Junction Boxesin standard size of 740*850*270. We have the latest equipment and technology for the strict checking of raw material at the initial stage only. We ensure that prior to manufacturing the material is checked on the grounds of quality. By keeping records of the leading market demands, we have developed a secure payment procedure that offers a plenty of options for making transactions.

Features :

Shockproof and rustproof
Rot-proof and termite resistant
Cable entry from bottom and/or sides
100% weatherproof
Pole mounting arrangement
Tamper proof
Pilferage proof
Restricts unauthorised tapping
Maintenance-free
Fire retardant - Class FV-0 as per IS:11731 Part-II or V-0 as per UL-94
High heat distortion temperature (200^oC as per IS:10192)

Specifications

Code No.	Inside Dimensions (mm) H x W x D	Applications
Side Hinged - Door fixed to base with hinges
GS-JB-1414	140 x 140 x 95	Junction box/cut-out box/fuse box for single phase/2 core low wattage FTL/CFL based lighting system for pedestrian/pathway illumination.
GS-JB-2014	200 x 140 x 95
GS-JB-2817	240 x 130 x 110	Pole mounted junction box/cut-out box/fuse box for road/street lighting for 3 phase/4 core high wattage HPSV/HPMV/MH based lighting system for industrial applications.
GS-JB-2520	250 x 200 x 105
GS-JB-3020[1] (right hinged)	300 x 200 x 105
Top Hinged - Door fixed to base with hinges on top
GS-JB-1616-T	140 x 140 x 100	Junction box/cut-out box/fuse box for single phase/2 core low wattage FTI/CFL based lighting system for pedestrian/ pathway illumination.
GS-JB-3016-T	275 x 135 x 110	Pole mounted junction box/cut-out box/fuse box for road/street lighting for 3 phase/4 core high wattage HPSV/HPMV/MH based lighting system for industrial, commercial as well as flood lighting applications.
Sliding - Door fixed to base by means of sliding
GS-JB-3416	340 x 160 x 90	Pole mounted junction box/cut-out box/fuse box for road/street lighting for 3 phase/4 core high wattage HPSV/HPMV/MH based lighting system for industrial, commercial as well as flood lighting applications. Provision for fixing 2 cut-outs, one for lighting and other for kiosks/ signage/emergency power supply.
Removable - Door fixed to the base by means of hardware
GS-JB-1510-R	55 x 100 x 60	Control terminal box/cut-out box
GS-JB-1816-R	185 x 165 x 60
GS-JB-2818-R	280 x 180 x 60
