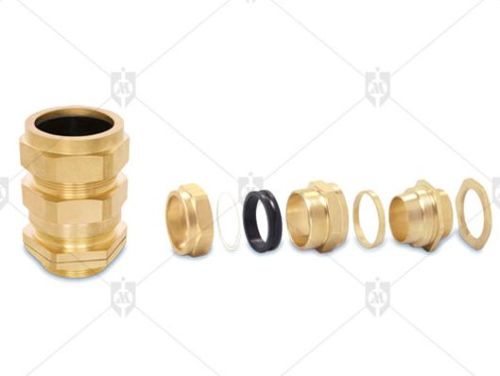

UMI Products Polished Brass CW Cable Gland, Feature : Durable, Easy To Fit

Download Detail File : Click Here

SIZE	CABLE DIMENSION			GLAND DIMENSION					PROD.CODE
SIZE	ARMOUR WIRE DIAMETER	UNDER ARMOUR DIA.'A' MM	OVERALLDIA. 'B'	LENGTH 'E' MM	LENGTH (FROM SHOULDER) 'F MM	METRIC ENTRY THREAD 'C'	ACROSS FLATDIA. 'G' MM	ACROSS CORNERDIA. 'H' MM	PROD.CODE
16	0.9	8.6	13.5	10	40	16mm	20	23	UMCW4-16
20S	0.90/1.25	12.5	17	10	47	20mm	22	29	UMCW4-20S
20	0.90/1.25	14.4	20.5	10	47	20mm	26	29	UMCW4-20
25S	1.25/1.60	17.8	23.8	10	50	25mm	31	34	UMCW4-25S
25	1.25/1.60	20.4	27	10	50	25mm	34	38.5	UMCW4-25
32	1.60/2.00	26.5	33	10	55	32mm	41.5	46.5	UMCW4-32
40S	1.60/2.00	31	37	10	60	40mm	45	50	UMCW4-40S
40	1.60/2.00	32.5	40.8	15	60	40mm	49	54	UMCW4-40
50S	2.00/2.50	37.8	45	15	65	50mm	51	64	UMCW4-50S
50	2.00/2.50	44	51.5	15	65	50mm	62.3	69.5	UMCW4-50
63S	2.5	50.5	60.5	15	70	63mm	70	78	UMCW4-63S
63	2.5	56.5	65.5	15	70	63mm	76.3	85	UMCW4-63
75S	2.5	62.5	72	15	75	75mm	85	95	UMCW4-75S
75	2.50/3.15	67.5	78.5	15	75	75mm	91	112	UMCW4-75
90	3.15	80	90	20	90	90mm	103	125	UMCW4-90

SIZE	CABLE DIMENSION			GLAND DIMENSION					PROD.CODE
SIZE	ARMOUR WIRE DIAMETER	UNDER ARMOUR DIA.'A' MM	OVERALLDIA. 'B'	LENGTH 'E' MM	LENGTH (FROM SHOULDER) 'F MM	METRIC ENTRY THREAD 'C'	ACROSS FLATDIA. 'G' MM	ACROSS CORNERDIA. 'H' MM	PROD.CODE
16	0.9	8.6	13.5	10	40	16mm	20	23	UMCW3-16
20S	0.90/1.25	12.5	17	10	47	20mm	22	29	UMCW3-20S
20	0.90/1.25	14.4	20.5	10	47	20mm	26	29	UMCW3-20
25	1.25/1.60	20.4	27	10	50	25mm	34	38.5	UMCW3-25
32	1.60/2.00	26.5	33	10	55	32mm	41.5	46.5	UMCW3-32
40S	1.60/2.00	31	37	10	60	40mm	45	50	UMCW3-40S
40	1.60/2.00	32.5	40.8	15	60	40mm	49	54	UMCW3-40
50S	2.00/2.50	37.8	45	15	65	50mm	51	64	UMCW3-50S
50	2.00/2.50	44	51.5	15	65	50mm	62.3	69.5	UMCW3-50
63S	2.5	50.5	60.5	15	70	63mm	70	78	UMCW3-63S
63	2.5	56.5	65.5	15	70	63mm	76.3	85	UMCW3-63
75S	2.5	62.5	72	15	75	75mm	85	95	UMCW3-75S
75	2.50/3.15	67.5	78.5	15	75	75mm	91	112	UMCW3-75
90	3.15	80	90	20	90	90mm	103	125	UMCW3-90
