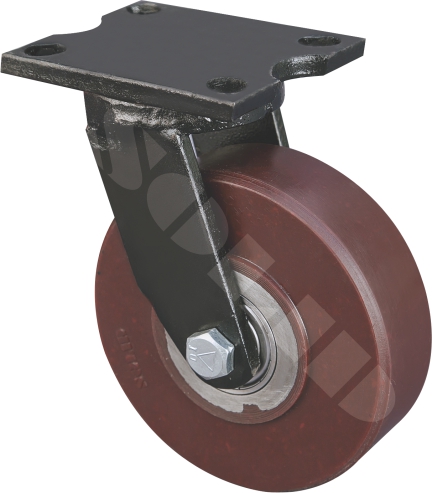

Fabricated Caster Wheels (DTB Series), For Chairs, Sofa, Stool, Stretcher, Width : 10-20mm, 20-30mm

Get Latest Price

MaterialMetal
Wheel TypeDual, Single
Packaging TypeAvailable in Many Colors
Width10-20mm, 20-30mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Solid Wheels Industries

Changodar, Ahmedabad, Gujarat

4.5/5

(2)

View Number

Member Since 12 Years
Nature of Business Retailer
GST No. 24ADGPS0271E1ZU

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerCasters & Wheels
MaterialMetal
Diameter10-100mm
ShapeRound
ApplicationChairs, Sofa, Stool, Stretcher
Packaging TypeAvailable in Many Colors
Width10-20mm, 20-30mm
FeatureCrack Resistance, Easy To Fit
Wheel TypeDual, Single

Our company is capable of delivering consignments on time owing to an efficient trading network we have. As, our organizations is a suppliers of Fabricated Caster Wheels (DTB Series); purchasers can place wholesale orders for it, and get them at the lowest prices.

Detail : Hevy Duty M.S. plate fabricated Swivel Caster, Steel Welded construction fitted with 2 nos Thrust Bearings provided with grease nipple and dust proof nylon seal. Solid central king pin, bolted and manually secured.
Code Reading / Ordering :

Heavy MS Plate type Fabricated with Double Thrust Bearings having UHM Wheel, Size 150 x 50 Swivel with Break.
HDPTF DTB / UHM / 150 x 50 /SBK

Details

Wheel	Bore mm	Plate Size	Bolt Spacing	Overall Height	Load Carrying Capacity kgs.
Dia x Width	Bore mm	Plate Size	Bolt Spacing	Overall Height	UHM	PPCP	CPUCI	CI
100 X 50	10	125 X100	100 X 75	155	300	150	200	300
150 X 50	10	125 X100	100 X 45	205	450	250	350	400
200 X 50	10	125 X100	100 X 75	255	500	300	450	500
