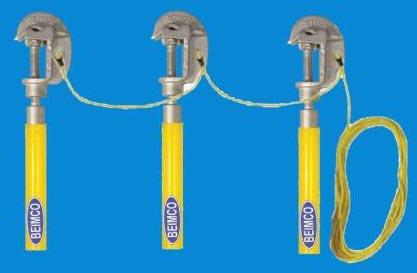

Polished Metal HT Discharge Rod

Application
Beimco telescopic earth discharge rod designed to protect people working at a de energized overhead lines or busbar. This unique product provides 100% safety, against an unexpected return of power on network.
Specification
Fiber glass tube manufactured from high quality epoxy resin. Products manufactured in automatic pultrusion plant hence strong sturdy. Super smooth glossy finish prevent moisture. Excellence dielectric strength.
Unique Telescopic design easy to assemble & easy to operate. Equipped with FRP/Rubber insulator to increase creepage distance. Bottom provided with slip resistance rubber grip. Canvas cover bag for protection of equipment. Tested as per IS & IEC standard.
Conductor clamp
Conductor clamps manufactured from die cast aluminum alloy or electrolyte grade copper strip. Strong sturdy & easy to operate. Smooth threading, firm connection with conductor choice available from various range of clamps.

• 20 x 3 copper Hook
• 20 x 5 copper Hook
• 25 x 5 copper Hook

Earthing Cable
PVC insulated or heat, oil & fire resistant multistrended ISI marked copper earthing cable having high amp. current carrying capacity. Earthing cable is provided in 4 sq.mm, 10 sq.mm, 16 sq.mm, 25 sq.mm, 35 sq.mm. Length of between two pipe is 1 mtr. or 2 mtr as per specification.
Cancas Bag
Canvas cover provided to keep instrument safely & solder strap provided to carry equipment. This unique product provides 100 % safety, against an unexpected return of power on network.
