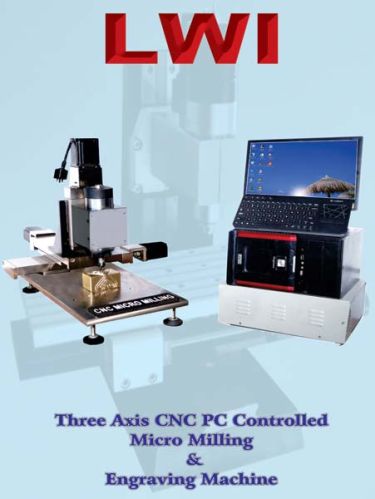

We are a well-known Manufacturer and Supplier of Three Axis CNC PC Controlled Micro Milling & Engraving Machine from Panchkula, Haryana. Our team of experts ensure the Micro Milling and Engraving Machines are produced using high-grade raw materials with cutting-edge technology. They function effectively and have long service life. Contact us to get these machines at competitive prices. Besides, we never cause any shipping delays.
| Description | Units | LW15105 |
|---|---|---|
| Table Clamping Area + | mm | 150x250 |
| XYZ Movement | mm | 150x100x50 |
| Guidways | - | Linear Cross Roller on all Axis |
| Ballscrew | - | C7 Class Rolled on all Axis |
| Feed Rate | m/min | 0.5 meter per min |
| Axis Motors | - | Stepper on all Axis (Optional Servo) |
| Axis Motors Torque | Kg/cm | 20.4 |
| Max. Job Weight | Kgs | 10 |
| Positioning Accuaracy | mm | 0.015 |
| Repeatability | mm | 0.01 |
| Spindle Power | kw | 0.8 |
| Spindle Speed | RPM | 6000-27000 |
| Spindle Drive Type | - | AC |
| CNC Controller | - | Open Loop upto 4 Axis |
| Machine Weight | Kgs | 60 |
