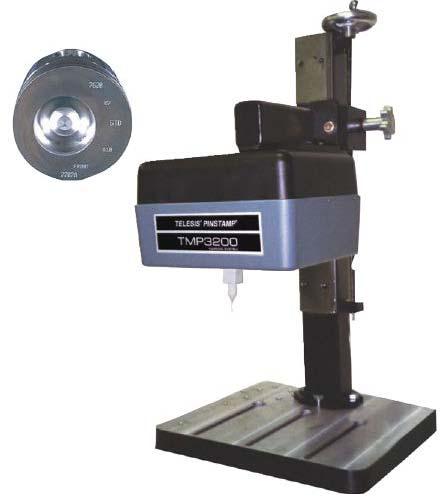

TMP 3200 Dot Peen Marking Machine, Production Capacity : 1000/HR

The TMP3200/420 Single Pin Marking System features a large 4" x 6" (100 x 150mm) marking window and marking speeds up to six characters per second. Well suited for both bench top and factory-automated applications, its simple, yet robust belt-driven dual rail, X/Y platform yields high quality characters and low maintenance operation. The TMP3200/090 includes the TMP320O Marking Head, plus our WIN 32 Mer/in®ll Visual Design Software, with state-of-the-art graphical user interface.
Features

• 4 x 6 (100 x 150mm) Marking Window
• Belt-driven, dual rail X/Y mechanism with superior wear characteristics
• Patented floating pin technology accommo-dates surface irregularities of up to .25 (6mm)
• Marks a wide range of materials from soft plastics to hardened steel- up to Rc60
• Choice of pin sizes for marking depths from .001 -.018 (.03 -.45mm)
• Compact, convenient TMC42O controller with rubber keyboard and 4-line LCD display —
• no PC required
• Automatically generates serial numbers, date, time and shift codes
• Stores up to 75 marking patterns
• Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers
• Dot density up to 200 dots per inch (79 per centimeter)

Optional Accessories

• TIVlP3200/090 System includes the TMCOQO Controller and Merlin®II Visual Design Software in lieu of TMC42O Controller
• Rotary fixtures for marking circumferences of cylindrical parts
• Marking head mounting post including programmable Z—axis version
• Panel-mount and IP/NEMA—Rated Controllers
• Log0lFont design software package for design of custom fonts or logos
• PC-Based Upgrade Utility available FREE from www. telesiscom for easy software upgrade
• PC-Based Pattern Back-up Utility available FREE from www telesiscom
