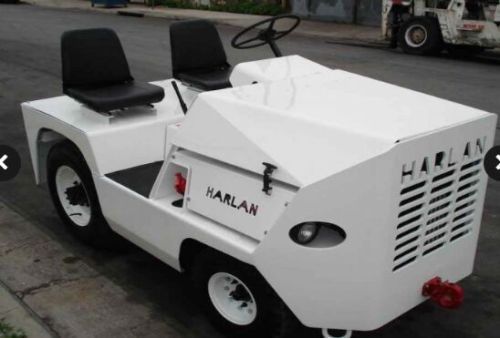

AVIATION BAGGAGE TOWING TRACTOR

HARLAN MODEL: GHT-KJ40 BAGGAGE TOWING TRACTORS 3,000 Lbs to 6,000 Lbs Drawbar Pull | Reconstructed to Zero Time or Reconditioneed By: Victory GSE
DRAWBAR PULL: 4,000 LBS DBP 5,250 LBS (+-)GVW (+-) 40,000 LBS TOWED Wt.
DIMENSIONS
LENGTH: 112"
WIDTH: 55.5"
HEIGHT: 63"
HEIGHT WCAB: 84"
WHEEL BASE: 70"
AVAILABLE DIESEL ENGINES
Equipped with Gauge & Sender system
CUMMINS | PERKINS | DEUTZ
Available Gasoline
3k-5k only
GM
TRANSMISSION
FORD C-6 Automatic
3 Speeds forward 1 Reverse
ELECTRICAL
12 V. Negative Ground
COOLING SYTEM
Liquid cooled 8.5 quart capacity radiator with integral transmission cooler
Oil cooled radiator with the Deutz engine
STEERING SYSTEM
Hydraulic Steering (Saginaw power assisted)
TURNING RADIUS
135" (3429mm)
DRIVE AXLE
Heavy duty Harlan 10,000 Lb. Load Capacity
STEER AXLE
Heavy duty Harlan with 118" King Pin
SUSPENSION
Leaf springs on front and rear axles
BRAKES | SERVICE
Dual Split System
Hydraulic Hydraulic
Dual rear disc woptional front disc brakes
Other brake options available upon request
PARKING
Mechanical Drum (Level Activated)
TOWING COUPLE
E-HITCH -1" PIN
Other couplers available on request
TIRES
Front 6.50 x 10
Rear LT21580R x 16
