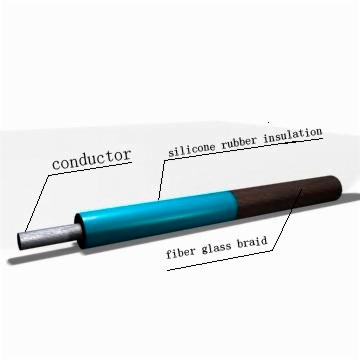

AWM 3071/3074/3075 Fiberglass Braided Silicone R Fiberglass Braided Silicone Rubber Wireubber Wire

MOQ5000 Meter
Brand NameOrient
Usagemotor, home appliance etc.
Functionhigh temperature upto 200'C
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering product features â·rated voltage:600v â·rated temperature:-60'c to +200'c â·conductor: tin-coated, nickel-coated, silver-coated copper wire â·insulator: silicone....

Company Information

Member Since 12 Years
Nature of Business Manufacturer
Year of Establishment 1998

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering product features
â·rated voltage:600v
â·rated temperature:-60'c to +200'c
â·conductor: tin-coated, nickel-coated, silver-coated copper wire
â·insulator: silicone rubber
â·applicable for drying machine, internal leading of electrical equipment.
wire letteringï¼�
ul awm3071 3074 3075 18awg -10awg 200'c 600v cul awm 200'c 600v sf-2 ft2
items
technical datas
applied standard
outer appearance
smooth, even, without loose
ul 758
ul 62
ul 1581
spark test
ac6kv/ 0.15 s
vol. Test
2 kv/1 min
insulation resistance
>30.5mohm.km
mechanical properties of insulation material
before aging
tensile strength
>3.45n/mm2
elongation at break
>100%
after aging
(210±1'c x1440h)
tensile strength
60% of the tensile strength before aging
elongation at break
25% of the elongation before aging
poisonous substance control
comply with rohs rule
eu-2002/95/ec

Additional Information

Payment Terms L/CT/T
Port of DispatchShanghai
Packaging Detailspacked in roll or on wooden reel, then put in carton, 500-1000cartons/20FCL
Delivery Timewithin 25days
