Awse6013 Welding Electrode, Packaging Type : black gray

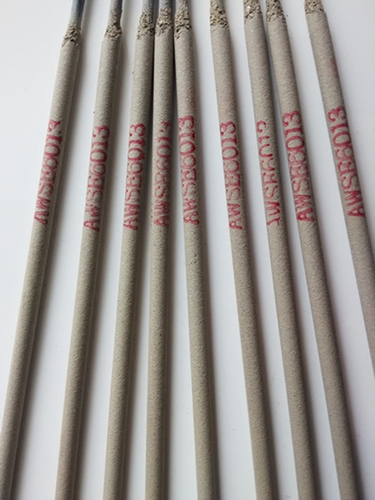

We are offering awse6013 welding electrode.
Features:
aws e6013 is carbon steel welding electrode covered with a high titania potassium type coating. Both ac and dc can be applied, and it is applicable for all-position welding, including vertical-down welding. It shows a very good welding performance with small spatter, easy restrike arc and very good weld shape.
Application:
suitable for welding low carbon steel structures and low carbon galvanized plate, especially applicable for vertical-down welding and intermittent welding.
Attention:
a.generally, welding electrode donot need bake before welding.
B.if damped, the electrodes should be baked for 0.5-1 hour at the temperature of 150-170℃ before welding.
Chemical composition of deposited metal: (%)
c mn si s p
standard ≤0.10 0.32-0.55 ≤0.30 ≤0.035 ≤0.040
typical 0.08 0.45 0.2 0.019 0.020
mechanical properties of deposited metal:
tensile strength (mpa) yield point (mpa) elongation(%) akv impact (-20℃)
≥420 ≥330 ≥17 ≥47
490 425 24 76
recommended current(ac、dc):
diameter(mm) 2.0 2.5 3.2 4.0 5.0 5.8
current(a) 50-80 60-100 100-140 150-210 180-240 220-280
