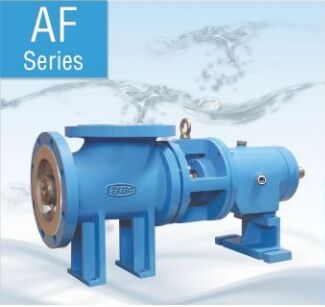

Axial Flow Pump

Applications:

The JEC Axial Flow pump is unmatched in the industry for high volume / Low head pumping requirements, especially when corrosive and/or abrasive solutions are involved. Mainly used in the following application:

• Evaporator and Crystallizer Circulation
• Phosphate, Soda Ash, Potash and Sodium Chloride Processing
• Polypropylene Reactors, Xylene application
• Black Liquor Evaporator, Chlorine Dioxide Generators
• Sewage Digesters
• Raw Water pumping, Flood control, Marine Ballast transfer

The Axial Flow pump generates flow by the thrust or lift action of rotating axial vanes of the impeller. The pump has an elbow that directs the flow through the suction and out the discharge end of the pump. It can be used in the top orend suction configuration depending up on the need and Flange dimensions, bolt circle and holes comply with ANSI 816.5, 1508. The back pull out design (up to 14” size) allows for easy maintenance and repair as the rotating element may be removed without disturbing the pipe work. Pump has wear rings as standard and lifting eye on bearing bracket.
