features

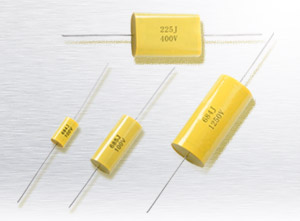

metallized polyester film, non-inductive wound construction.
Wrapped with polyester adhesive tape and epoxy resin filled.
Small size, light weight and excellent self-healing property.
Applications
suitable for blocking, by-pass coupling and decoupling.
Interference suppression in low voltage applications.
Specifications
reference standard: iec 60384-2
operating temperature: -40°c - +85°c
capacitance range: 0.01uf - 10uf
capacitance tolerance: ±5%(j), ±10%(k), ±20%(m)
rated voltage: 100vdc, 250vdc, 400vdc, 630vdc, 1000v
dissipation factor: 1.0% max. At 1khz, 20°c
dielectric strength: 160% of rated voltage for 5 sec.
Insulation resistance: 30,000 mohm min. For c≤0.33uf
10,000 mohm*ufc min. For c>0.33uf (20°c)
notes
customization for special specification and requirement is available.
