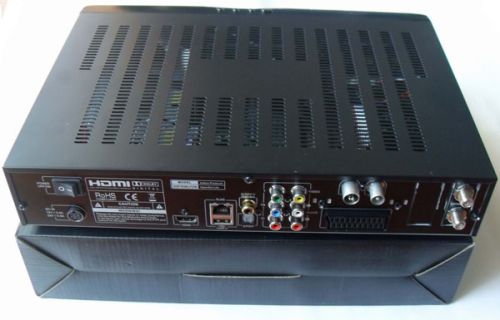

Azbox Hd

We offer Azbox Hd.
Tech specs:
1) performance features
sigma designs smp8634lf cpu
linux operative system
128 mb ddr system memory
128 mb ddr video memory
big storage memory (nor flash 8mb, dom 256mb),
total flash memory 264 mb
pal and ntsc video output formats
support resolution up to 1080p (supported
resolutions: 576i (480i), 576p (480p), 720p, 1080i, 1080p)
2) audio and video supported formats and
codec�s (for tv applications and media player)
supported video containers: mpeg1/2/4 (m1v, m2v,
m4v); mpeg1/2 ps (m2p, mpg); mpeg2 transport stream (ts, tp, trp,
m2t, m2ts, mts), vob, avi, asf, wmv, ifo, iso; matroska (mkv), mov
(h.264), mp4, rmp4
supported video codec�s: xvid sd/hd; divx;
mpeg-1; mpeg-2: mp at hl; mpeg-4.2: asp at l5, 720p, 1-point gmc; wmv9:
mp at hl; h.264: bp at l3; h.264: mp at l4.0; h.264: hp at l4.0; h.264:
hp at l4.1;
vc-1: mp at hl; vc-1: ap at l3
supported audio containers: aac, m4a, mpeg audio
(mp1, mp2, mp3, mpa), wav, wma, flac, ogg
supported audio codec�s: aac; aac +; dolby
digital, wma, wma pro, mp1, mp2, mp3, lpcm, flac, vorbis, audio
passthrough: dts; dolby digital
supported subtitles formats: smi, srt, txt, sub,
ssa
supported pictures formats: jpeg, bmp, gif
3)
dvb-s/s2 tuner specifications
input frequency: 950 ~ 2150mhz
modulation: qpsk, 8psk
fec: 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 6/7, 7/8, 8/9,
9/10
demodulation ic: cx24116
input impedence: 75?
if frequency: 36.128mhz
4) connections
1x hdmi
3x video component (ycbcr)
1x rca video
2x rca audio (l/r)
1x rj45
2x usb 2.0
1x optical s/pdif
1x scart
1x 0/12v
1x rf modulator ant in, tv out
1x power switch
5) wi-fi
802.11b/g
minipci
6)
internal hdd socket
internal socket for 2,5'' and
3,5'' hard disk drives
7) accessories
rcu with batteries, power adapter
and power cable
8) power consumption
5 w in standby mode
60 w in operation
with hdd
9) measurement details
dimensions (w x h x d): 340
x 243 x 66 (mm)
gross weight: 2.65 kg
net weight: 2.11 kg
gross weight with hdd: 3.04 kg
net weight with hdd: 2.49 kg
10) power supply (voltage,
type)
12v 3.4a / 24v 0.8a.
