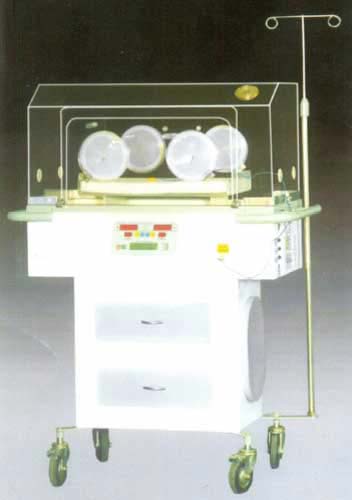

Baby Incubator

We offer Baby Incubator. Our baby incubator "v-150" is designed to meet the safest and most stable environment. This baby incubator offers the advanced technology and innovative design to meet your most demanding clinical care needs in the nicu. A digital microprocessor controller provides permanent check of all important functions. Built in features of our baby incubator are ensured for proper operation, also gives clear indication of temperature settings.
salient features
the controller is based on micro computerized system.large bright displays are easy to monitor and for viewing from a distance.digital display system provided to measure theinfant temperature. Air temperature and to set the required temperature.feather touch keys provided for easy operation.bar graph led system provided to indicate the heater output.fault indications with alarm forbaby probe failureair probe failure1oc temperature high1oc temperature lowhigh temperature cut-offpower failure
baby probe / air probe
baby probel air probe is made of highly sensitive sensor and interchangeable, field calibrations taken care of by software. The probe is made up of silicon sheathed cable, which allows easy cleaning.
other facilities
iv stand providedstorage drawers provided. Infant whilst incubator in usefour port doors provided to handle thetrendelenburg & fowler system provided
technical specifications
mattress : 525 x 380 mm
physical parameters
height : 1425 mmdepth : 585 mmwidth : 945 mmworking level from the ground : 900 mmbaby tray tilt angle on either side : +1_80maxweight : 60 kg (approx)castors : 125 mm with 2 brake wheels and 2 non-brake wheels
recommended environmental specifications
operating temperature range : 200oc to 33ocstorage temperature range : -25oc to 60ocoperating humidity range : 0 to 100%rh
skin temperature probe
range : 28oc to 38ocaccuracy : +1-0.2oc withm rangeresolution : 0.1ocprobe interchangeability : +1-0.2c (servo)
air temperature probe
range : 28oc to 38ocaccuracy : +1-0.2oc within rangeresolution : 0.1ocprobe interchangeability : +/-o.2oc (servo)
electrical specifications
electrical supply : 230v - 10%, 50 hz
power consumption with heater at max. Output : 500w
electrical safety
as per lee 60601-1-2 for medical equipments
