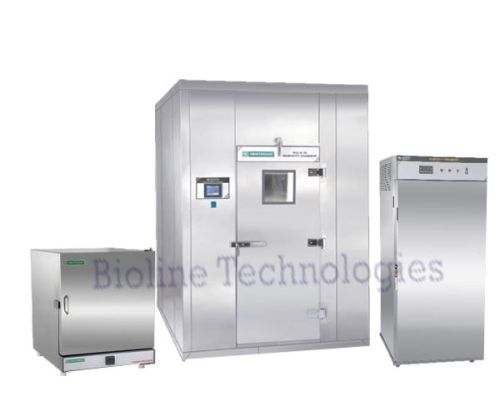

Bacteriological Incubator, Size : 12x12x12

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Temperature Range : 10 °C to 60°C Accuracy : ± 0.5°CTemperature Uniformity : ±1.0°C Temperature Suitable for 18 -24°C, 20-25°C, 30-35°C, 35-37°C, 40-45°C & 55-60°C. ConstructionThis....

View More Details

Send Enquiry

Company Information

Bioline Technologies

Kalwa, Thane, Maharashtra

View Number

Member Since 13 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Temperature Range : 10 °C to 60°C Accuracy : ± 0.5°C
Temperature Uniformity : ±1.0°C

Temperature Suitable for 18 -24°C, 20-25°C, 30-35°C, 35-37°C, 40-45°C & 55-60°C.

Construction
This unit has double walled chamber, with glass wool/PUF insulation. Interior made of Stainless Steel & Exterior is either made of Mild Steel finished with powder coating or Stainless Steel. This unit has full-length inner glass door and outside metal door with magnetic gasket and lock. The unit is provided with perforated Stainless Steel trays. Forced air circulation for uniform temperature. PU wheels for easy move ability.
Intellligent Control System
Temperature Controller with Ethernet Communication
Heating System

Long lasting stainless steel tubular heaters with s.s. fins.

Sensor
Temperature transmitter 4-20mA used for measurement. Temperature in degree Celsius with 0.1°C resolution.

Cooling System
Hermitically sealed compressor coupled with evaporation coil and condenser, safe guarded by time delay circuit. CFC free refrigerant

Alarms
Audio and visual alarms are generated for temperature variation

Safety
The unit is provided with safety devices for temperature over shoot in case of malfunction.

The unit works on 230 Volts AC and 50Hz mains supply.

Eqp - Equipment
Shp – Shipping

Optional

Common Software: Chambers are connected on TCP/IP (Ethernet) with the centralized work station and transferring data in database. This centralized workstation provides the tool for viewing, trending and alarm management of chambers. It has date and time stamp audit trails and complies to US FDA 21 CFR Part 11.
Temperature Scanner: 4 point scanner for temperature having 4 temperature probes provided with alarms to monitor various parts of equipment.
Door Access System: The door access system restricts access to the chamber to authorized persons only. In this system a physical lock is provided additional to this password access control is provided. Maximum six users can access the chamber.
Remote Alarm System: Alarm for Temperature & Humidity deviations. Indicator LED to identify equipment deviation. Alarm hooter test push button.
Mobile Alert System Suitable for Newtronic Equipments whenever the alarm is generated by the system the user has to acknowledge the alarm with in predetermined time. If the user fails to acknowledge the alarm will send as a sms to 6 predefined numbers.

Selection Guide

Exterior M.S. Powder Coated & Interior S.S.	Interior & Exterior S.S.	Capacity		Internal Dimension	External Dimension	Weight (Kg)		Tray
Exterior M.S. Powder Coated & Interior S.S.	Interior & Exterior S.S.	Cuft.	Litres	HxWxD (mm)	HxWxD (mm)	Eqp	Shp	(mm)	Nos.
NEC108RTSI	NEC108RTSSI	8	200	600 x 600 x 600	1150 x 760 x 1045	200	275	560 x 560	2
NEC112RTSI	NEC112RTSSI	12	324	900 x 600 x 600	1450 x 760 x 1045	250	325	560 x 560	3
NEC116RTSI	NEC116RTSSI	16	430	1200 x 600 x 600	1795 x 760 x 1095	275	350	560 x 560	4
NEC121RTSI	NEC121RTSSI	21	600	1200 x 700 x 700	1795 x 860 x 1195	300	400	660 x 660	4
NEC128RTSI	NEC128RTSSI	28	800	1200 x 800 x 800	1795 x 960 x 1295	325	425	760 x 760	4
NEC134RTSI	NEC134RTSSI	34	1000	1500 x 800 x 800	2095 x 960 x 1295	350	450	760 x 760	5
