GENERAL INFORMATION | |

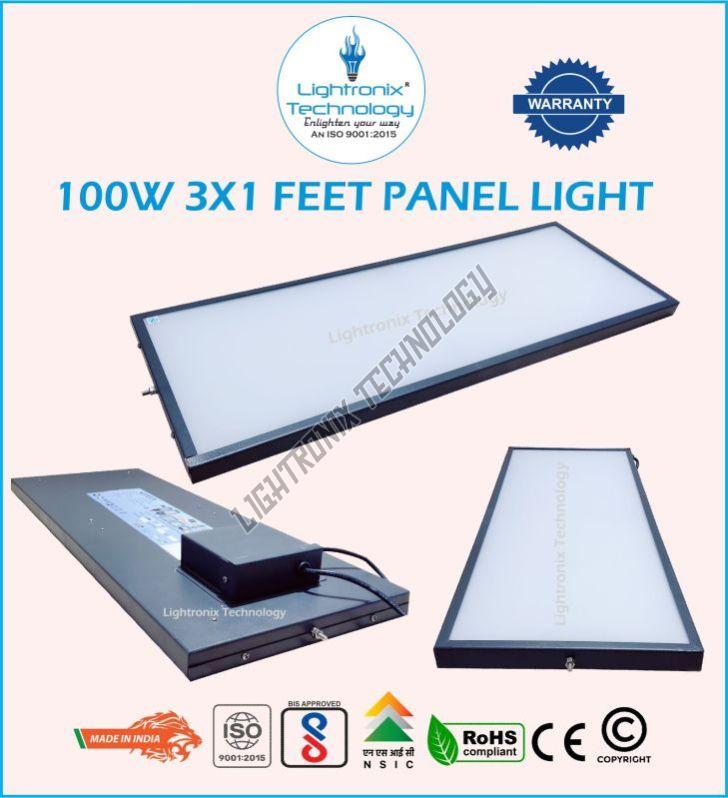

Order Code | LT-100WPANEL-3×1 |
Make | Lightronix Technology |
Country of Origin | INDIA |
Lighting Source & Type | SMD 2835 LED 0.2W |
Number of LED | 500 |
OPTICAL PARAMETERS | |
Led Beam Angle | 120 Degree |
CRI (Color Rendering Index) | >80 |
LED Life Span | >60000 Hours |
Color | White/Warm White/Cool White (As Per Order) |
Color Temperature | 2700-6500K(As Per Order) |
Led Voltage/Current | 3.2V/60mA |
LED Make | Bridge lux |
Optical Lens | NA |
Luminous Efficiency | 140 Lm/W |
Total Lumens | 14000(±5%) |
Optical Efficiency | >93% |
Thermal Efficiency | >90% |
ELECTRICAL PARAMETERS | |
Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
Operating Frequency | 50/60HZ |
Power Consumption | 100 Watt |
Power Factor | >0.95 |
THD | 90% |
Supply Phase | Single Phase Supply |
Over voltage Protection | 440VAC Protection |
Under voltage Protection | 90VAC |
Auto cutoff Voltage | Lower Side310VAC |
PCB INFORMATION | |
PCB Thickness | 1.6mm(±5% Tolerance) |
PCB Material | Pure Aluminum-Copper |
Copper Layer Thickness | Standard 0.35 Micron |
Copper Conductivity | >1 Watt |
PCB Size | 774x266 mm ( 2 PCB of 390x266 mm) |
MECHANICAL PARAMETERS | |
Housing Material | Metal body (20 gauge Thickness) |
Housing Color Type | Anti-dust Off grey powder coating |
Housing Shape | Rectangle |
Total Luminaries Weight | 5.980 Kg |
Luminaries Size | 830 X 310 X 30 mm3 (±5%) |
Diffuser Glass Size | 820mm X 295mm |
Mounting Device | Clamp |
Mounting Style | Wall mounting/ceiling/Hanging |
Glass Type | Anti-glare diffuser glass (2 mm thickness) |
Cable Entry Option | PG7 Cable Gland with Rubber Washer |
Screw Type | Stainless Steel Screw |
IP Rating | IP54 – Dust proof (Protection against Dust & Water Splashes) |
Impact Rating | IK08/IK10 |
Marking Type | Laser Marking/Engraving |
