Balancing Machine

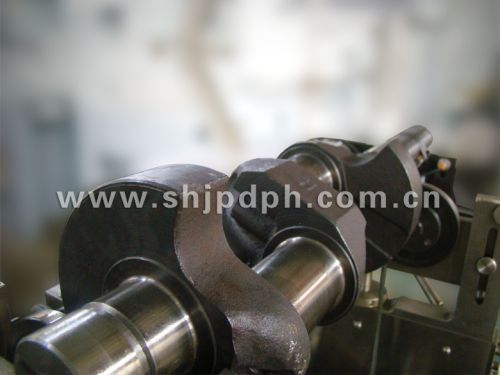

balancing machine for crankshaft(phq-50)
this balancing machine is widely used in balancing rotatable bodies, such as kinds of good-sized and medium-sized motors, crankshaft,textile machinery, fans,shaft, etc .. driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.
specifications parameters
max mass of workpiece (kg) 50
max diameter of workpiece (mm) 700
distance between two support bearings (mm) 80--700
journal diameter scope of workpiece (mm) 8~80
diameter scope of driving belt (mm) 18~200
rotation speed when the diameter of driving belt is 100mm (r/min) 650/1000/1300/2000
motor power (kw) 0.55/0.75
min achievable residual unbalance amount (emar) 0.5g mm/kg
