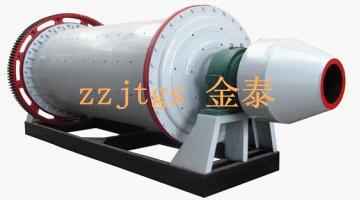

jintai30Ball Mill Features:
1. The hollow axis adopts the cast steel and the lining can be replaced. The big rotary gear is forged from cast rolling gears;
2. The barrel body is inlaid with wearable plates;
3. The ball roller mill machine runs steadily and efficiently;
Ball Mill Application:
Ball Mills are widely applied in cement industry, chemical industry, new building materials, fire-resistant materials, fertilizer, porcelain and glass industry etc. Two kinds of process methods: wet process and dry process are both available. SBM mining equipment which is a famous ball mill manufacturer in China has tried our best to service for you.
Model Rotary
Speed
(rmin) Ball Quantity (t) Input
Size
(mm) Output
Size
(mm) Capacity
(th) Power
(kW) Weight
(t)
Φ900x1800 38 1.5 ≤20 0.075~0.89 0.65~2 18.5 3.6
Φ900x3000 38 2.7 ≤20 0.075~0.89 1.1~3.5 22 4.6
Φ1200x2400 32 3.8 ≤25 0.075~0.6 1.5~4.8 45 12.5
Φ1200x3000 32 5 ≤25 0.074~0.4 1.6~5 45 12.8
Φ1200x4500 32 7 ≤25 0.074~0.4 1.6~5.8 55 13.8
Φ1500x3000 27 8 ≤25 0.074~0.4 2~5 90 17
Φ1500x4500 27 14 ≤25 0.074~0.4 3~6 110 21
Φ1500x5700 27 15 ≤25 0.074~0.4 3.5~6 132 24.7
Φ1830x3000 24 11 ≤25 0.074~0.4 4~10 180 28
Φ1830x6400 24 23 ≤25 0.074~0.4 6.5~15 210 34
Φ1830x7000 24 25 ≤25 0.074~0.4 7.5~17 245 36
Φ2200x5500 21 30 ≤25 0.074~0.4 10~22 370 48.5
Φ2200x6500 21 30 ≤25 0.074~0.4 14~26 380 52.8
Φ2200x7500 21 33 ≤25 0.074~0.4 16~29 475 56
Ball Mill Working Principle:
Ball mill is the key device for further grinding after crushing of materials. Ball mill is suitable for dry- or wet-type milling ore of various kinds and other material for grinding, which is widely used in the fields of cement, silicate products, new-type building materials, refractory, fertilizer, metallurgy, glass ceramics, mining industry and so on.
Ball mill is mainly composed of charging and discharging, cyclone and rotation parts (like redactor, minor rotation gear, motor, electric machine, etc). Hollow axis is made of steel parts with a lining replacable. Major rotation gear, machined by rolling wheel of casting, is lined with wearing plate with fine wear-resisting property. This machine runs stably and reliably.
Ball Mill Benefits :
In comparison with old-fashioned ball mill with slide bearing, power-saving rate is 5%-10% for average yield and the ability to deal with ore has increased by 15%. Ball mill is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and so on. The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.
Ball Mill OpeartionBall Mill repair and maintenance are crucial for assuring manufacture efficiency. If not maintained properly, ball mill run-time will be reduced causing substantial economic losses.
1. The operators must be qualified with the required technical knowledge, received technical training and fully understand the operating principle, regulations of the ball mill.
2. The operators should follow the operate principle and lubricate the requirement parts marked in lubrication picture. Untreated waste oil may not be used and keep lubrication points clean.
3. Pay attention to check the temperature of bearing not to exceed 60 and make sure every bolt not loose, no abnormal sound, uniform mining feed, steady water feed, normal current and voltage of motor.
4. To keep surroundings clean where the ball mill run. Every party should be clean unless it's running.
