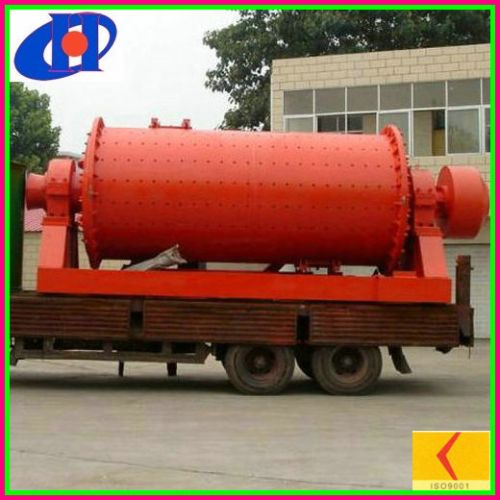

Ball Mill, Brand Name : Yuheng, Certification : ISO9001:2008

We are offering ball mill.
★1.ball mill is a key equipment to grind all kinds of ores and other materials.
2.ball mill is widely used in powder-making. Production line including cement, silicate, new-type building material, refractory material,fertilizer,ore dressing of ferrous metal and non-ferrous metal,glass ceramics,etc.
★ball mill is a type of cylindrical device used to grind (or mix) materials like ores, chemicals, ceramic raw materials and paints.
ball mill rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium.
different materials are used for media, including ceramic balls, flint pebbles and stainless steel balls.
working principle：
1.ball mill is a horizontal crown rotating device,extension gear transmission, materials evenly enter from the feed device through compound-into-air shaft screw into first mill barn.
2.it is equipped with ladder steel plate or corrugated liner,built in different specifications of steel balls,centrifugal force rotating cylinder produces brings steel ball to a certain height and falls,pounding and abrading on materials.
3.after coarse grinding in the first barn,materials enter into the second barn by single compartment,which is lined with flat plate,builds in balls,putting the materials to further grind.
4.powder is discharged through the discharging board operator to complete the grinding operation.
details of ball mill q900*1800:
max.feeding size: 20mm
output size:0.075-0.89mm
capacity:0.65-2th
power:18.5kw
weight: 4.6t
----------------------------------------------------------------------------------
about the service we supply:
henan yuheng machinery manufacturing co.,ltd
(1).pre-sales service
 1. Offering comprehensive technical and business consultation services:
2. Proposing the most suitable scheme and equipment for our clients:
3. Designing and fabricating targeted products according to the special requirements of clients:
4. Training periodically high qualified service technician,
(2).after-sales service
1.highly inspecting equipments in every working procedure, quality comes first;
2.fast & safe delivery;
3.assisting our clients for foundation construction of equipment;
4.dispatching engineers to install and debug equipment;
5.training the first-line operators on site;
6.regularly visit clients to solve production problems;
7.providing life-long maintenance service;
8.providing technical exchanging;
