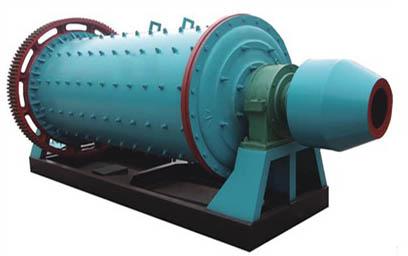

Ball Mill Machine, Power : 15 (KW)

We are offering ball mill machine.
ball mill
1.for cement, silicate, ceramic
2.wet or dry ball mill
3. Overflow or grate ball grinder
4.iso cert
1. Brief introduction of ball mill
ball mill is mainly used to grind materials in mineral, cement, refractory, chemical industry, etc. Ball mill has dry and wet ways. When wet ball mill works, certain water and other liquid will be added into materials to increase flowability of materials, so the capacity is increased. When dry ball mill works, capacity is affected because material flowability is reduced, so absorbing wind device is needed on the outlet of ball mill, and then negative pressure is formed in the ball mill to increase flowability of material, so the capacity is increased.
2. Working principle of ball mill
when the ball mill works, motor and speed reducer transmit torque force to big and small gears of ball mill, so the barrel rotates. when the barrel.
3. Features of ball mill
1. large application range, simple structure and convenient maintenance.
2. large capacity and continuous work are very obvious.
3. barrel lining and grinding media can apply various abrasive materials.
4. installation and adjustment are very convenient and easy to be operated.
4. Technical parameters of ball mill
model
speed
(r/min)
max. Weight of balls (t)
input size
(mm)
output size (mm)
power (kw)
capacity
(t/h)
weight
(t)
φ900×1800
37
1.8
≤15
0.075-0.89
15
0.5-2
3.4
φ900×2100
37
2.3
≤15
0.075-0.4
18.5
0.4-2
3.9
φ900×3000
35
3.85
≤25
0.075-0.4
30
1.1-2.5
7.78
φ1200×2400
35
4.6
≤25
0.075-0.4
30
1.3-3.2
8.65
φ1200×2800
35
5.4
≤25
0.075-0.4
37
1.5-3.7
10.02
φ1200×4500
35
8.6
≤25
0.075-0.4
45
2.7-6.79
14
φ1500×3000
29
9
≤25
0.047-0.4
75
3.3-8.2
14.12
φ1500×3500
29
10.5
≤25
0.047-0.4
75
3.3-8.5
15.64
φ1500×4500
29
13.5
≤25
0.047-0.4
90
4.5-12
20
φ1500×5700
29
17
≤25
0.047-0.4
110
2.6-14
21.5
φ1830×3000
24
13.5
≤25
0.047-0.4
135
4-15
28
φ1830×3600
24
14
≤25
0.047-0.4
135
4-15
29
φ1830×4500
24
20
≤25
0.047-0.4
155
4-19
32
φ1830×7000
24
31.5
≤25
0.047-0.4
210
6-22
36.5
φ2100×3000
22
18
≤25
0.047-0.4
210
6.4-28
40.79
φ2100x3600
22
20
≤25
0.047-0.4
210
7-28
42
φ2100×4000
22
21.5
≤25
0.047-0.4
210
7.6-28
43.45
φ2200×3600
21.7
25
≤25
0.047-0.4
245
5.2-32
44
φ2200×7000
21.7
46
≤25
0.047-0.4
380
15-38
63
φ2400×3600
21
28
≤25
0.047-0.4
320
8-60
47
φ2400×4500
21
35
≤25
0.047-0.4
380
8.5-60
70.5
φ2700×3600
20.7
40
≤25
0.047-0.4
400
12-80
75.5
φ2700×4500
20.7
48
≤25
0.047-0.4
430
12-90
102
φ3200×4000
18
65
≤25
0.047-0.4
800
30-180
137
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. We are waiting for your first inquiry order.
