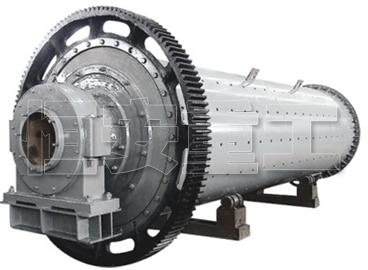

Ball Mill, Capacity : 3000kg

Operation Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear, two-chamber, and grid discharging. The materials are transferred to the first grinding chamber through the quill shaft uniformly. There are ladder liner, ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height to impact and grind the materials. After the coarse grinding in the first chamber, materials enter into the second chamber through separating plate, where there are liner plate mounted and steel ball to make the further grinding. The ground materials are discharged through the discharging board, thus the grinding process completes.
Technical Parameter
Model Φ
Rotation Speed Of The Chamber(r/min)
Ball Load(t)
Feed-In Material Size(mm)
Feed-Out Material Size(mm)
Capacity(t/h)
Power(kw)
Weight(t)
900×1800
36-38
1.5
≤20
0.075-0.89
0.65-2
18.5
4.6
900×3000
36
2.7
≤20
0.075-0.89
1.1-3.5
22
5.6
1200×2400
36
3
≤25
0.075-0.6
1.5-4.8
30
12
1200×3000
36
3.5
≤25
0.074-0.4
1.6-5
37
12.8
1200×4500
32.4
5
≤25
0.074-0.4
1.6-5.8
55
13.8
1500×3000
29.7
7.5
≤25
0.074-0.4
2-5
75
15.6
1500×4500
27
11
≤25
0.074-0.4
3-6
90
21
1500×5700
28
12
≤25
0.074-0.4
3.5-6
130
24.7
1830×3000
25.4
11
≤25
0.074-0.4
4-10
130
28
1830×4500
25.4
15
≤25
0.074-0.4
4.5-12
155
32
1830×6400
24.1
21
≤25
0.074-0.4
6.5-15
210
34
1830×7000
24.1
23
≤25
0.074-0.4
7.5-17
245
36
2100×3000
23.7
15
≤25
0.074-0.4
6.5-36
210
34
2100×4500
23.7
24
≤25
0.074-0.4
8-43
245
42
2100×7000
23.7
26
≤25
0.074-0.4
8-48
280
50
2200×4500
21.5
27
≤25
0.074-0.4
9-45
280
48.5
2200×6500
21.7
35
≤25
0.074-0.4
14-26
370
52.8
2200×7000
21.7
35
≤25
0.074-0.4
15-28
380
54
2200×7500
21.7
35
≤25
0.074-0.4
15-30
380
56
2400×4500
21
30
≤25
0.074-0.4
8.5-60
320
65
2700×4000
20.7
40
≤25
0.074-0.4
12-80
400
94
2700×4500
20.7
48
≤25
0.074-0.4
12-90
430
102
3200×4500
18
65
≤25
0.074-0.4
depends the technological conditions
800
137
