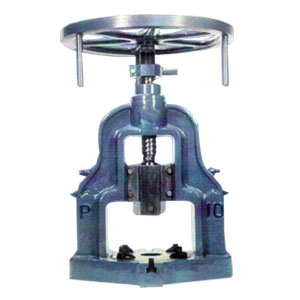

Ball Press

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

HP Singh Machinery Pvt.Ltd is a renowned manufacturer, supplier and exporter of Ball press machine. We have been providing quality machines to our clients at the most reasonable prices featuring....

View More Details

Send Enquiry

Company Information

H P Singh MAchinery Pvt Ltd

Ganesh Chandra Avenue, Kolkata, West Bengal

View Number

Member Since 13 Years
Nature of Business Manufacturer
GST No. 19AAACH7128M1Z8

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

HP Singh Machinery Pvt.Ltd is a renowned manufacturer, supplier and exporter of Ball press machine. We have been providing quality machines to our clients at the most reasonable prices featuring stable performance with high yield and facilitates the process of energy saving, environment protection, pollution alleviation and transport.

Salient Features

Extra Heavy cast Frame, Ribbed for strength.
Top end of screw with Hexagonal Tapered reception for the wheel to ensure No-Slip.
Bed provided with T-Slots and adjustable steel die-holding clamps.
Cast Tapered Central Ram and Machined Guideways. Easily Adjustable Against Wear and Tear.
Mild steel screw with Heavy duty square angular thread.
Base Hole Adjustable with Bushrings to Suit different jobs. Threaded die hole, Gun metal bushing etc. Can be supplied as optinals.

Single Sid

Single Sided Fly Press
No. Size	0		1		2		3		4		5		6		7
	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm
Base to Guide	4 ½	114	5	127	5 ¾	146	6 ¾	171	7 ¼	184	8	204	9	229	11	279
Centre to Back	3	76	3	76	3 ¾	95	4 ½	114	4 ¼	110	5 ¼	133	6	152	8	203
Diameter of Screw	3 ⁷/₆	37	1 ¹¹/₁₃	43	1 ¹/₁₆	43	1 ¹³/₁₆	46	1 ³/₈	48	1 ⁷/₈	48	2 ³/₈	60	3	76
Hole Through Base ( without ring )	1 ¾	32	1 ¾	44	1 ¾	44	3	76	3 ½	89	4	102	4 ½	114	6	152
Hole Through Base ( without ring )	–						1 ½	38	1 ¾	44	2	51	2 ¼	57	3	76
Stroke	3	76	4	102	4 ½	114	4 ½	114	5 ½	139	5 ¾	148	6	152	8	203
Hole in Ram ( Dia )	¾	19	1	25	1	25	1	25	1	25	1	25	1	25	1 ¼	32
Hole in Ram ( Depth )	1 ½	38	1 ½	38	1 ½	38	1 ½	38	1 ½	38	1 ½	38	2	51	2 ½	64
Diameter of Fly wheel	18	229	18	229	19 ¾	260	21	536	23	587	23	587	29	739	32	813
Height of the body	19 ¼	484	19 ½	484	21 ½	546	24 ¾	631	26 ¼	682	28 ¼	733	33 ¼	847	40	1016
Total weight of Machine	35 KG		78 KG		100 KG		140 KG		170 KG		200 KG		300 KG		550 KG

Double Sided Fly Press
No. Size	6		8		10
	Inch	mm	Inch	mm	Inch	mm
Base to Guide	9	229	10	250	11	279
Between Uprights	12	305	14	356	17	432
Hole through base ( without ring )	4 ½	114	6	152	8	203
Hole through base ( without ring )	2 ¼	57	3	76	4	102
Stroke	7	178	8	204	9	228
Diameter of screw	2 ⁵/₆	62	3	76	3 ³/₈	88
Hole in Ram (Dia)	1	25	1 ¼	32	1 ¼	32
Hole in Ram (Depth)	2	51	2 ½	64	2 ½	64
Total weight of Machine	375 KG		500 KG		674 KG

Arbour Press
	Square		Round
	Ram		Ram
Modle No	AP-1	AP-2	AP-3	AP-4
Max. Pressure Exrted (Tons)	1 ½	1	1 ½	3
Centre to back	5 ½	6 ¾	7 ½	10
Max. hight from base to guide	11	12	13 ½	18 ¾
Max. High arbour	9	12	13 ½	18 ¾
Plate to guide
Size of arbour round or square	1 ¼	½	1 ¾	2 ¾
Approx net weight	35 KG	60 KG	80 KG	140 KG
