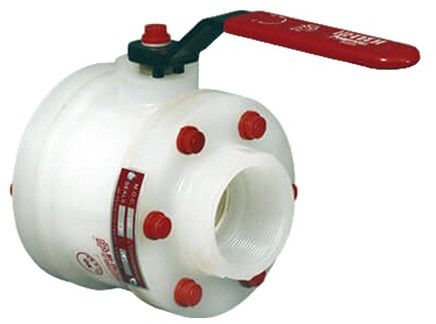

We offer a high-quality Ball Valve with Flanged End designed to meet your industrial needs. Operating at a pressure of 150 Psi and a temperature range of 0°C to 100°C, this valve ensures reliable performance. Featuring a Lever handle for easy operation, bi-directional flow direction, and a design standard compliant with API 6D, it is a top choice for various applications. The seat material made of PTFE ensures durability and longevity. Trust our expertise as a leading manufacturer to provide you with a dependable Ball Valve solution for your business.
| NO. | DESCRIPTION | QTY. | MATERIAL |
|---|---|---|---|
| 1 | BODY | 1 | PP / ISO.PP/ PVDF / ETFE |
| 2 | END PIECE | 2 | PP / ISO.PP/ PVDF / ETFE |
| 3 | SPINDLE | 1 | EN-8 INSERTED PP/ ISO.PP / PVDF / ETFE LINED |
| 4 | HANDLE | 1 | MS EPOXY COATED WITH FLEXIBLE PVC SLEEVE |
| 5 | BALL | 1 | PP / ISO. PP / PVDF / ETFE |
| 6 | FLANGE SEAL | 2 | EPDM / VITON / PTFE / NEOPRENE |
| 7 | SPINDLE SEAL | 2 | EPDM / VITON / PTFE / NEOPRENE |
| 8 | SEAT | 2 | PTFE |
| 9 | FASTENERS | - | MS GALVANISED / SS-304 / SS-316 |
| 10 | SPINDLE BOLT | 1 | MS GALVANISED / SS-304 / SS-316 |
| 11 | SPINDLE BUSH | 1 | PTFE |
