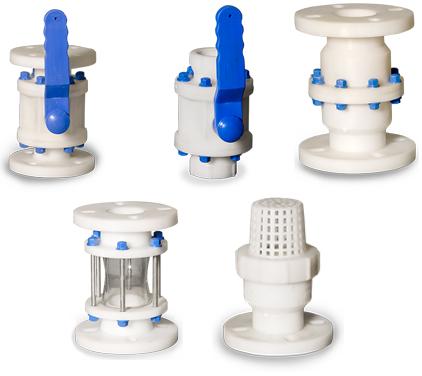

    Ball valves, Actuation Type : Manual

    Ball valves, Actuation Type : Manual

    Get Latest Price
    • DescriptionMaterial
    • BallPP / PP-H / ISO. PP / PVDF / HDEPE
    • Body SEALNeoprene / EPDM / Viton
    • BallPP / PP-H / ISO. PP / PVDF / HDEPE
    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Shk Polymers Industries
    location Vatva, Ahmedabad, Gujarat
    View Number
    • calendar Member Since 10 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • DescriptionMaterial
    • BodyPP / PP-H / ISO. PP / PVDF / HDEPE
    • SpindleEN-8 inserted (SS-304/SS-316) – PP / PP-H / ISO. PP / PVDF lined
    • Flange SEALNeoprene / EPDM / Viton
    • HandlePP with harden Spines
    • DescriptionMaterial
    • FastenerMS Galvanized SS-304 / SS-316
    • End PiecePP / PP-H / ISO. PP / PVDF / HDEPE
    • BallPP / PP-H / ISO. PP / PVDF / HDEPE
    • Ball SeatPTFE
    • Seal RingNeoprene / EPDM / Viton
    • BallPP / PP-H / ISO. PP / PVDF / HDEPE
    • BodyPP / PP-H / ISO. PP / PVDF / HDEPE
    • Body Seal CarrierPP / PP-H / ISO. PP / PVDF / HDEPE
    • Spindle boltMS Galvanized SS-304 / SS-316
    • Spindle SEALNeoprene / EPDM / Viton
    • FastnerMS Galvanized SS-304 / SS-316
    • Body SEALNeoprene / EPDM / Viton
    • Spindle SeatPTFE

    Features :

    • Thermoplastic Material. Heavy Duty construction & corrosion free.
    • Accurate dimension & crack proof finish.
    • Light weight, easy to install & offering reduced handling, labour, freight & installation cost
    • Excellent mechanical & environmental strength.
    • Low operating torque because of threaded seal carrier
    • Antiblock system prevents ball jamming
    • 100 % tested and leak proof (remove 100% factory…)
    • High impact & chemical resistance. Stands upto the most demanding application
    • Ergonomic operator – friendly handle made of high resistance PP
    Pressure Rating:

    • Body :10 kg/cm2 (150 PSI)
    • Seat :10 kg/cm2 (150 PSI)
    Max Temperature Rating :

    • PP : 85° C
    • Iso. PP : 100°C
    • PP – H : 110°C
    • PVDF : 130°C
    • Drilling Standards : ANSI B 16.5 (150#), AS 2129, (Table D, E & F) and Capsule Shape
