brand name: baoweiplace of origin: chinamodel number : 07material : monocrystalline siliconmax. Power : 18.17vnumber of cells : 36 (4*9)size : 1196*541*35mmwarranty : 25 yearsapplication : for solar systemframe : anodized aluminum alloypower tolerance : ±3% tempered glass : 3.2mm
description

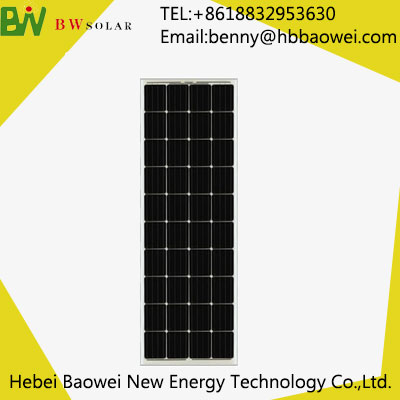

bw-100-36m monocryslline solar module
mechanical data
cell type mono125mm*125mm
no. Cells 36 (4*9)
size 1196*541*35mm
weight 7.8kg
electrical data
(stc: irradiance 1000wm², module temperate 25℃, am=1.5)
power 90w 95w 100w
max. Power voltage (vmp) 18.17v 18.17v 18.17v
max. Power current (imp) 4.96a 5.23a 5.51a
open circuit voltage (voc) 21.6v 21.6v 21.6v
short circuit current (isc) 5.45a 5.76a 6.06a
power tolerance ±3%
normal operating cell temp(noct) -40+85℃
tem compensation coefficient -(0.45±0.05)% ℃
tem of isc (0.065±0.015)% ℃
tem of voc -(80±10)mv℃
tempered glass 3.2mm
packaging & delivery
minimum order : 100 pcsupply ability : 100 mw per year
