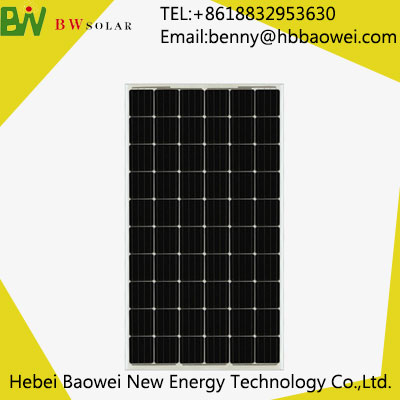

BAOWEI-250-260-60M Monocryslline Solar Module

Quick Information
Brand Name: BaoweiPlace of Origin: ChinaModel Number : 03Material : Monocrystalline SiliconMax. Power : 30.23VNumber of Cells : 60 (6*10)Size : 1640*992*40mmwarranty : 25 yearsapplication : for solar systemframe : anodized aluminum alloypower tolerance : ±3% tempered glass : 3.2mm
Description
BAOWEI-250-260-60M Monocryslline Solar Module
Mechanical Data
Cell type Mono156*156mm
No. cells 60 (6*10)
Size 1640*992*40mm
Weight 19.8kg
Electrical Data
(STC: Irradiance 1000wm², module temperate 25℃, AM=1.5)
Power 230w 240w 250W 260w
Max. power voltage (Vmp) 30.23V 30.23V 30.23V 30.23V
Max. power current (Imp) 7.61A 7.94A 8.27A 8.61A
Open circuit voltage (Voc) 36.2V 36.2V 36.2V 36.2V
Short circuit current (Isc) 8.37A 8.73A 9.1A 9.47A
Power Tolerance ±3%
Normal Operating Cell Temp(NOCT) -40+85℃
Tem compensation coefficient -（0.45±0.05）% ℃
Tem of ISC (0.065±0.015)% ℃
Tem of VOC -（80±10）mv℃
Tempered Glass 3.2mm
Packaging & Delivery
Minimum Order : 100 pcSupply Ability : 100 mw per year
