Bar Graph Indicator Model

Get Latest Price

Model NumberProduct Description
RangeSubject to the full range of the specified input or 0 to 3500 count or -1999 to +1999 with decimal point selection.
Resolution0.001 /0.01/0.1/ 1 unit Subject to the specified input and range (User selectable decimal point)
AccuracyBetter than ± 0.1% of the specified range
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Model NumberProduct Description
RangeSubject to the full range of the specified input or 0 to 3500 count or -1999 to +1999 with decimal point selection.
Resolution0.001 /0.01/0.1/ 1 unit Subject to the specified input and range (User selectable decimal point)
AccuracyBetter than ± 0.1% of the specified range
BGI-144-TBar Graph Indicator for Two fixed Inputs with 4 relay outputs
Two InputsAny two of the above – to be specified.
BGI-144-UBar Graph Indicator for universal Input with 2 to 4 relay outputs
ModelsBGI-144-U(Universal input) , BGI-144-F(Single input) and BGI-144-T (Dual Input)
Square root extractorBuilt in to display flow rate – when the input 4-20mA is from DP transmitter. (Optional).
Input (Single input)Thermocouple type J, K, R, S, B, C, D or RTD(Pt-100) 2 or 3-wire input, mV and (4 – 20)mA (Universal and user selectable)
BGI-144-FBar Graph Indicator for Single fixed Input with 2 to 4 relay outputs

Description :

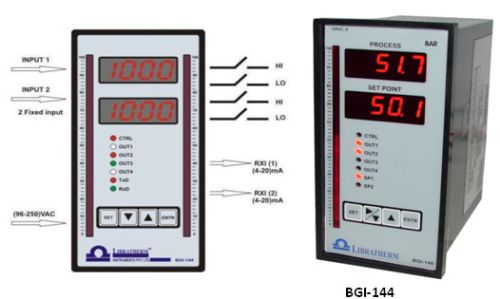

Libratherm offers Microcontroller based universal or single / two fixed input Bar Graph Process Indicator model BGI-144 with both Digital and Bar graph indications. In addition, the instrument provides analogue retransmission output of 4-20mA with built in 24VDC loop supply to power external loop transmitter. The process value is converted into equivalent 0 to 100% value and is displayed on the bar graph using 51 red LEDs for each input with 2% resolution per LED. Two to Four relay outputs are also provided which can be used for high and low alarms for single or dual input. Serial communication on RS485, 2 wire with MODBUS RTU protocol is also available with programmable Modbus ID in slave mode. BGI-144 is available in 144 x 72 x 120mm panel mounting enclosure with ABS bazel, polycarbonate graphics and metal enclosure. BGI-144 works on 90 to 250VAC supply.

Features :
• Microcontroller based design.
• Single / Two fixed or Universal Input (8 user selectable).
• Built in square root extractor for 4-20mA (optional feature)
• Two relay outputs for High, Low or Deviation per input.
• 4-20mA retransmission output linearized and proportional to PV.
• Bright red LED display for PV and SV..
• 51 LED bar graph display for each PV.
• Built in 24VDC loop supply.
• IP 20 metal enclosure.
• RS 485 Modbus serial interface (Optional).

Application :
• Process Control
• Water Treatment
• Power Generation
• Control Panels & Switch boards
• Monitoring Systems
